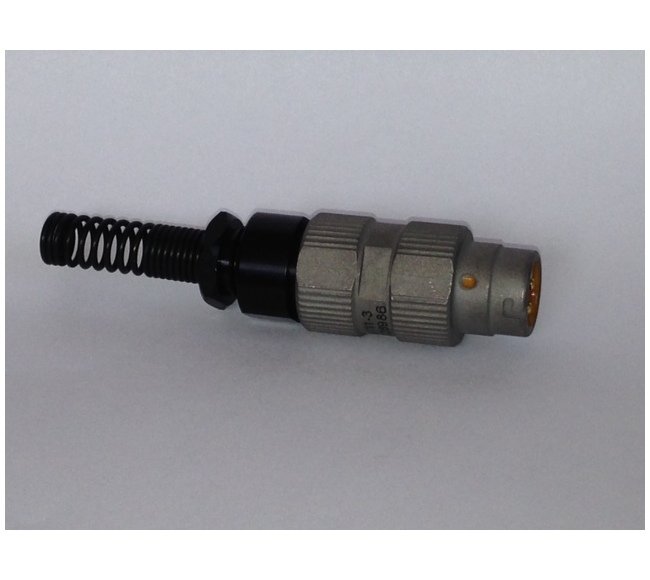

The Mil-Spec Audio Jack Connector (MIL-C-55116) is a high-quality receptacle designed with precise specifications to meet the rigorous demands of military and industrial applications. With a stainless steel shell, gold-plated contacts, and a temperature range of -55 to 85 ºC, this connector ensures reliable performance in harsh environments. Its solder cup spring contact types and panel mount strain relief make installations secure and durable. Designed for 3000 mating cycles, this connector offers superior conductivity with a current rating of 0.5 A and a voltage rating of 60 V, meeting the highest standards for military connectors.
Product Specifications
Specifications Alternate Pn
M55116/10 | U-183 Type
Specifications Connector Style
Receptacle
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder Cup Spring
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Panel Mount
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
