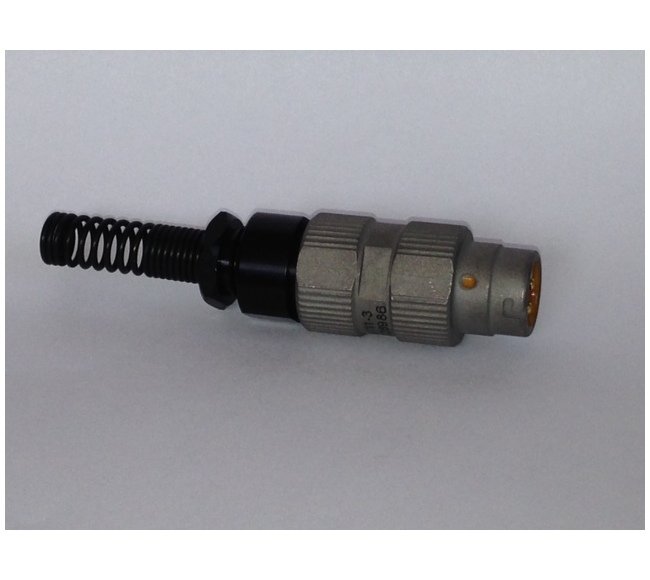

Mil-Spec Audio Jack MIL-C-55116
Mil-Spec Audio Jack MIL-C-55116
SKU:M55-897f6b
Robust Mil-Spec Audio Jack MIL-C-55116, featuring stainless steel shell, gold-plated brass contacts, and exceptional insulation resistance for secure connections in demanding environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Mil-Spec Audio Jack MIL-C-55116
$24.99
Quantity: 1
Claim Your Seller Account
Mil-Spec Audio Jack MIL-C-55116
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top-notch reliability and performance with our Mil-Spec Audio Jack MIL-C-55116. This robust audio connector features a stainless steel shell, gold-plated brass contacts, and superior insulation resistance. With a current rating of 0.5A and a voltage rating of 60V, this receptacle ensures secure connections in demanding environments. Designed for excellence with bayonet coupling and 3000 mating cycles, this audio jack meets MIL-C-55116 standards, making it ideal for military and institutional applications.
Product Specifications
Specifications Alternate Pn
M55116/14 | U-228 Type
Specifications Connector Style
Receptacle
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder Cup Spring
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
