Mil-Spec Audio Plug (MIL-C-55116) - Ruggedized, Stainless Steel, 5 Contacts, Bayonet Coupling

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

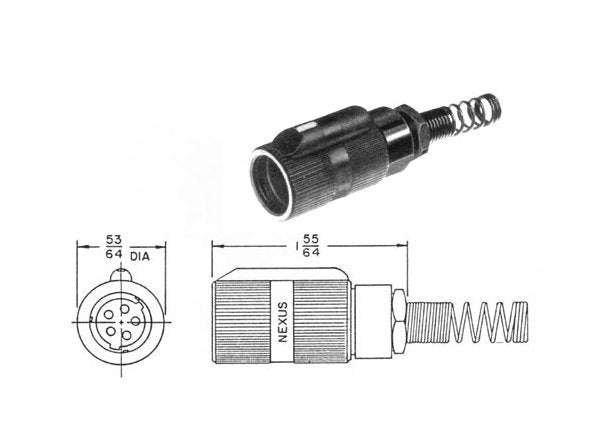

Enhance your audio connectivity with our Mil-Spec Audio Plug (MIL-C-55116) designed for ruggedized commercial and military applications. This plug features molded strain relief, stainless steel shell material, gold-plated brass contacts, and a current rating of 0.5A. With an overall diameter of .828 in and an overall length of 1.859 in, this plug meets MIL-C-55116 standard, ensuring reliability and durability in extreme conditions. Ideal for applications requiring secure mating with 3000 cycles endurance and water immersion resilience up to 6 feet for 48 hours.

Product Specifications

Specifications Alternate Pn

M55116/5 | U-182 Type

Specifications Application

Ruggedized Commercial / Military

Specifications Connector Style

Plug

Specifications Contact Depression

1.25-1.75 lbs per contact

Specifications Contact Material

Gold-plated Brass / Silver-plated BeCu (Springs)

Specifications Contact Resistance Maximum

.050 O

Specifications Contact Types

Crimp

Specifications Current Rating

0.5 A

Specifications Dielectric Withstanding Voltage Sea Level Rmv

500 V

Specifications Insert Material

Thermoset Plastic

Specifications Insulation Resistance

1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms

Specifications Mating

Bayonet Coupling

Specifications Mating Cycles

3000

Specifications Number Of Contacts

Specifications Overall Diameter

.828 in

Specifications Overall Length

1.859 in

Specifications Shell Material

Stainless Steel, 303, Passivated

Specifications Standard

MIL-C-55116

Specifications Strain Relief

Molded

Specifications Temperature

-55 to 85 ÂºC

Specifications Voltage Rating Maximum

60 V

Specifications Water Immersion

6 feet of water up to 48 hours (mated and unmated)
