Mil-Spec Audio Plugs - 5 Conductor Insert (MIL-C-55116)
Mil-Spec Audio Plugs - 5 Conductor Insert (MIL-C-55116)
SKU:M55-7df15c
Enhance connectivity with Mil-Spec Audio Plugs (MIL-C-55116) - Rugged design, 6 contacts, Stainless Steel shell, Gold-plated Brass contacts, meeting military standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Mil-Spec Audio Plugs - 5 Conductor Insert (MIL-C-55116)
$39.99
Quantity: 1
Claim Your Seller Account
Mil-Spec Audio Plugs - 5 Conductor Insert (MIL-C-55116)
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

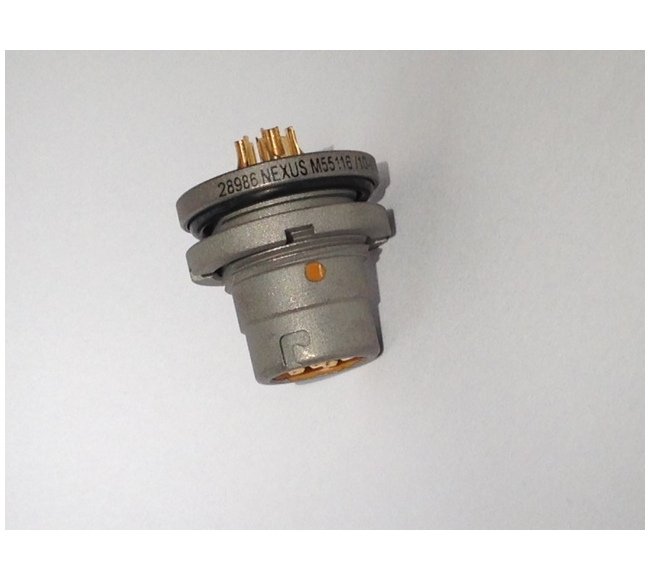

Enhance your connectivity with our Mil-Spec Audio Plugs featuring a ruggedized design meeting MIL-C-55116 standards. These Shielded Plugs are crafted with Stainless Steel shells, gold-plated Brass contacts, and offer wire strain relief. With 6 contacts, Bayonet Coupling, and 3000 mating cycles, these plugs ensure reliable performance in harsh environments. Suitable for military and commercial applications with a temperature range of -55 to 85 °C, ideal for critical missions.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Shielded Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

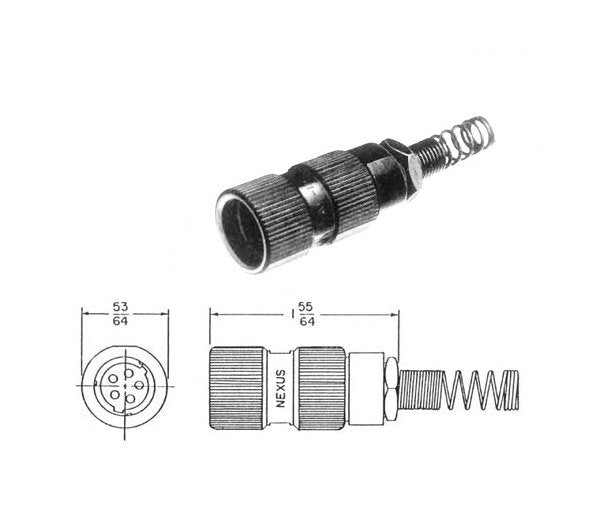

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.953 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
