Mil-Spec Audio Plugs (MIL-C-55116) - 5 Contacts, Stainless Steel
Mil-Spec Audio Plugs (MIL-C-55116) - 5 Contacts, Stainless Steel
SKU:M55-f7c83e
Durable Mil-Spec Audio Plugs (MIL-C-55116) with strain relief, solder cup terminals, and stainless steel construction.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Mil-Spec Audio Plugs (MIL-C-55116) - 5 Contacts, Stainless Steel
$24.99
Quantity: 1
Claim Your Seller Account
Mil-Spec Audio Plugs (MIL-C-55116) - 5 Contacts, Stainless Steel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

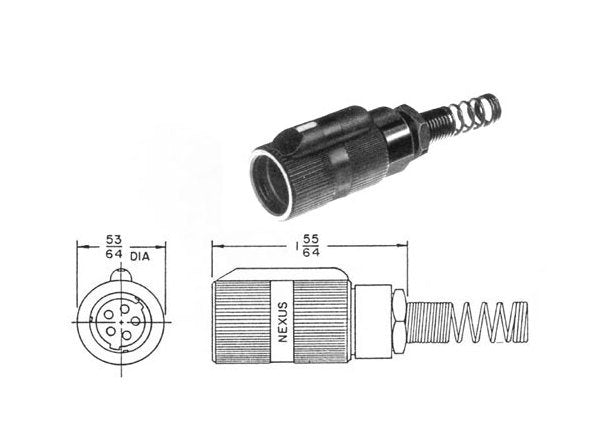

Experience unparalleled durability and performance with our Mil-Spec Audio Plugs (MIL-C-55116). These ruggedized commercial/military connectors feature a molded strain relief, solder cup terminals, and are built to MIL-C-55116 standards. With an overall diameter of .828 in and overall length of 1.859 in, these plugs are designed for reliability in harsh environments. The connectors boast a shell material of passivated stainless steel, 303 grade, ensuring corrosion resistance and longevity. Ideal for military applications, they offer a current rating of 0.5 A and are rated for voltages up to 60 V, meeting the stringent requirements of government and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Alternate Pn
M55116/7 | U-182 Type
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
5
Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Molded
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
