Mil-Spec Audio Plugs (MIL-C-55116) - Ruggedized Connectors
Mil-Spec Audio Plugs (MIL-C-55116) - Ruggedized Connectors
SKU:M55-84a1cb
High-quality MIL-C-55116 Audio Plugs for rugged audio applications. Stainless steel shell, gold-plated contacts, molded strain relief. Ideal for military use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mil-Spec Audio Plugs (MIL-C-55116) - Ruggedized Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Mil-Spec Audio Plugs (MIL-C-55116) - Ruggedized Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your audio connections with these MIL-C-55116 compliant Audio Plugs. Featuring a stainless steel shell, gold-plated brass contacts, and molded strain relief for durability. With a current rating of 0.5A, voltage rating of 60V, and temperature range of -55 to 85ºC, these plugs are ideal for rugged commercial and military applications. The bayonet coupling ensures secure mating through 3000 cycles, while the thermoset plastic insert provides reliable insulation. Trust these connectors for high-performance audio solutions that meet stringent MIL-Spec standards.
Product Specifications
Specifications Alternate Pn
M55116/6 | U-182 Type
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

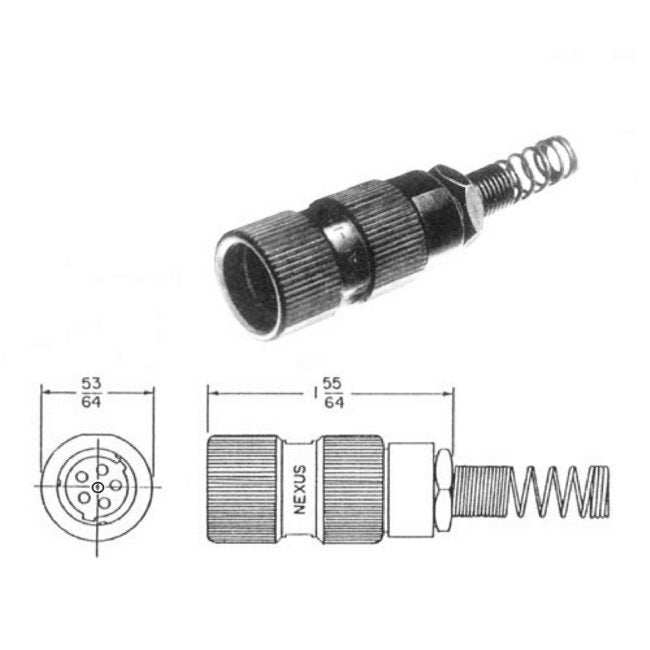

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Molded
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
