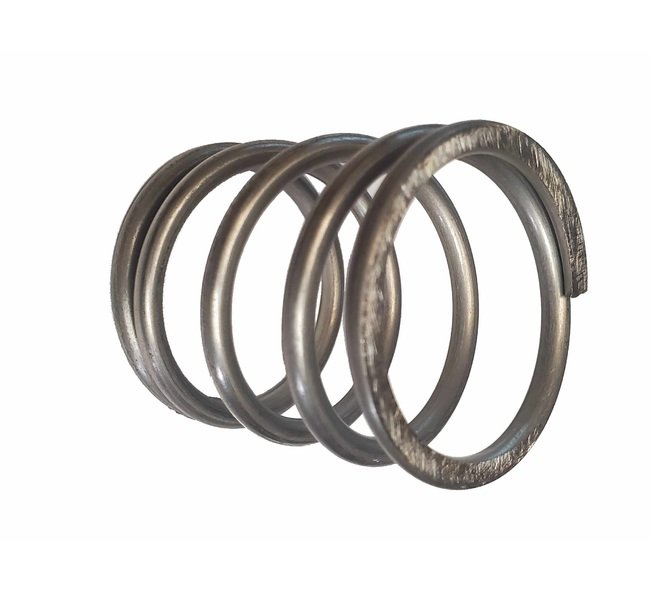

Mil-Spec Cadmium Plated Music Wire Compression Spring
Mil-Spec Cadmium Plated Music Wire Compression Spring
SKU:MIL-af10ea
High-quality Mil-Spec Cadmium Plated Music Wire Compression Spring with precise dimensions and DFARS compliance for 20 lb loads.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Mil-Spec Cadmium Plated Music Wire Compression Spring
$25.99
Quantity: 1
Claim Your Seller Account
Mil-Spec Cadmium Plated Music Wire Compression Spring
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Mil-Spec Cadmium Plated Music Wire Compression Spring features an outside diameter of 0.24 in, wire diameter of 0.038 in, and free length of 1.38 in. With a load capacity of 11.06 lbs, 16.25 active coils, and a spring rate of 23.4 lb/in, this compression spring meets stringent MIL-STD standards AS24585 and MS24585. Manufactured in the USA, DFARS compliant, and starting with part number MS24585, our spring ensures reliability and durability for various industrial applications.
Product Specifications
Specifications Active Coils
16.25
Specifications Deflection
0.473 in
Specifications Deflection Per Coil Load
0.0291 in
Specifications Free Length
1.38 in
Specifications Load
11.06 lb
Specifications Material
Cadmium Plated Music Wire
Specifications Maximum Solid Height
0.693 in
Specifications Outside Diameter
0.24 in
Specifications Spring Rate
23.4 lb/in
Specifications Wire Diameter
0.038 in
