Mil-Spec Copper Sleeves MS51844-46, 3/16" Rope Size, Pack of 100

Name: Mil-Spec Copper Sleeves MS51844-46, 3/16" Rope Size, Pack of 100
Brand: Lexco Cable Manufacturing
SKU: MIL-e75abb
Price: 149.99 USD
Availability: OutOfStock

SKU:MIL-e75abb

High-quality Mil-Spec Copper Sleeves for secure wire rope crimping. Meets MS51844-46, 3/16" Rope Size, HG Shape. Pack of 100.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

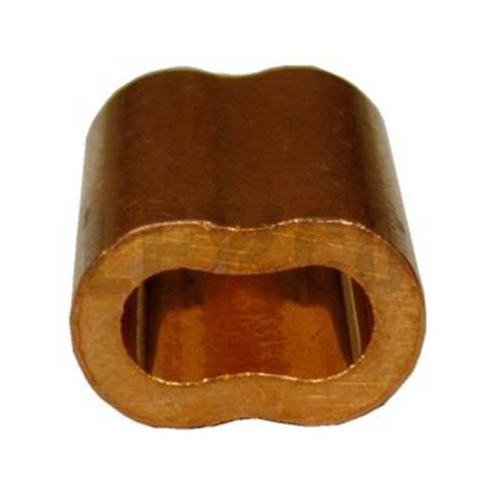

Upgrade your wire rope or aircraft cable assemblies with our Mil-Spec Copper Sleeves MS51844-46 Series. These high-quality HG-shaped sleeves ensure secure crimping, meeting C Max, D Max, and E Max specifications. With a No. Presses requirement of 4, easy installation is guaranteed. Benefit from precise dimensions like After Swage O.D. of 0.475 and a weight of 5.1lbs per 100 pieces. Cross-referenced with 3897T7, 16X780, and 18-6-X standards.

Product Specifications

Specifications After Swage Od

0.475

Specifications Cross Reference

3897T7 | 16X780 | 18-6-X

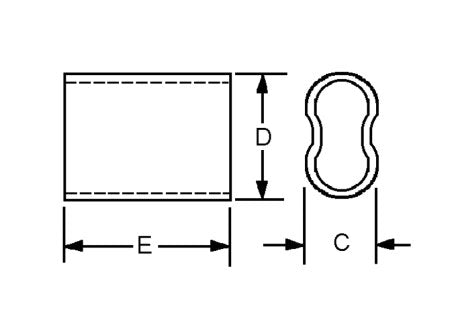

Specifications C Max

.450

Specifications D Max

.710

Specifications E Max

1.000

Specifications Mil Spec

MS51844-46

Specifications No Presses

Specifications Rope Size Sleeve Size

3/16"

Specifications Shape

Specifications Wt100 Pcs Lbs

5.1

CAGE

0T9L4

NAICS

332510

PSC

4030

Mil-Spec Copper Sleeves MS51844-46, 3/16" Rope Size, Pack of 100
