Mil-Spec Copper Sleeves MS51844-47 - 7/32"

Name: Mil-Spec Copper Sleeves MS51844-47 - 7/32"
Brand: Lexco Cable Manufacturing
SKU: MIL-42cd4c
Price: 49.99 USD
Availability: OutOfStock

SKU:MIL-42cd4c

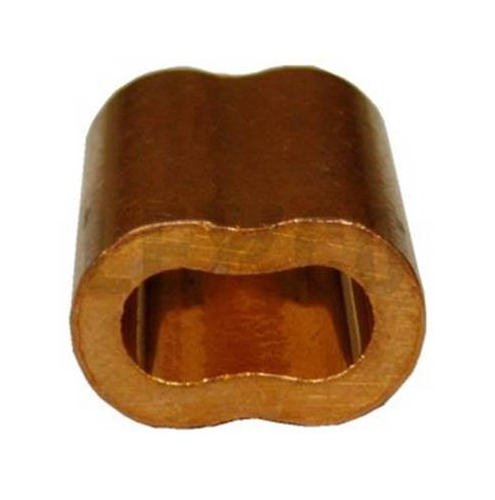

Premium Mil-Spec Copper Sleeves for secure crimping on wire ropes. HG-shaped, 7/32" size, compliant with MS51844-47.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

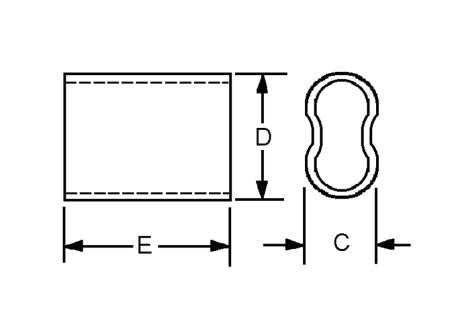

The Mil-Spec Copper Sleeves MS51844-47 Series are meticulously crafted for secure crimping onto wire ropes or aircraft cables. With precise dimensions including C Max of .480, D Max of .740, and E Max of .940, these sleeves undergo 4 presses for optimal performance. Weighing 4.6 lbs per 100 pieces, the high-grade HG-shaped sleeves also boast compatibility with rope size 7/32". Cross-references include 3897T8, 16X781, and 18-8-F2 for versatile application.

Product Specifications

Specifications After Swage Od

0.51

Specifications Cross Reference

3897T8 | 16X781 | 18-8-F2

Specifications C Max

.480

Specifications D Max

.740

Specifications E Max

.940

Specifications Mil Spec

MS51844-47

Specifications No Presses

Specifications Rope Size Sleeve Size

7/32"

Specifications Shape

Specifications Wt100 Pcs Lbs

4.6

CAGE

0T9L4

NAICS

332510

PSC

4030

Mil-Spec Copper Sleeves MS51844-47 - 7/32"
