Mil. Spec Double Shank Ball Swage Terminal
Mil. Spec Double Shank Ball Swage Terminal
SKU:MIL-269e44
Meet MIL-DTL-781 with precision-engineered Mil. Spec Double Shank Ball. Durable stainless steel construction in various sizes. Made in the USA.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

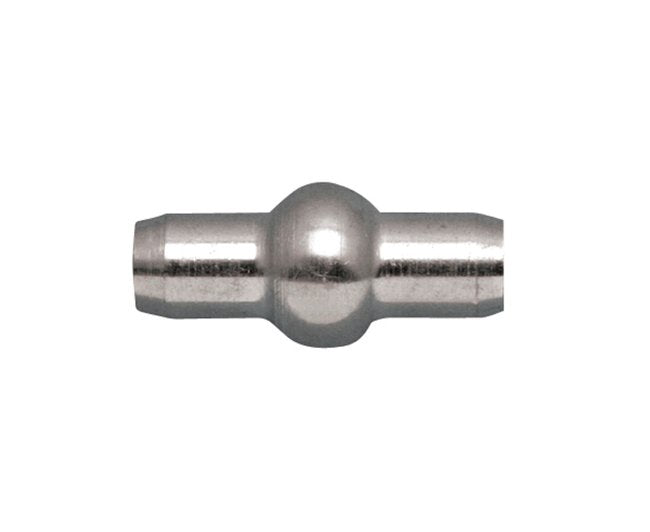

The Mil. Spec Double Shank Ball Swage Terminal, designed by Suncor, meets stringent military specifications including MIL-DTL-781 and is QPL-781 approved. Precision machined from high-quality stainless steel, it offers reliable performance for a range of applications. Available in various sizes from 1/16" to 5/16", this Made in USA terminal ensures durability, strength, and precision in every connection, making it ideal for military and institutional use.
Product Specifications
Specifications After Swage
0.30 in
Specifications Ball After Swage
0.51 in
Specifications Ball Before Swage
0.56 in
Specifications Before Swage
0.35 in

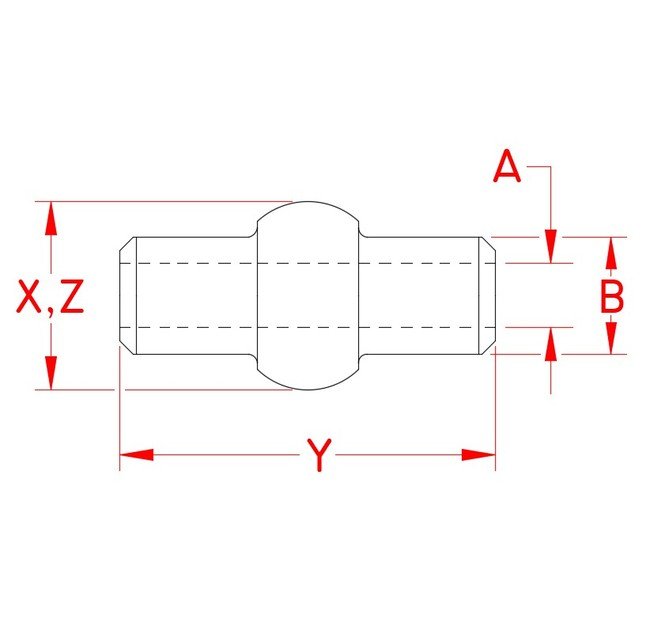

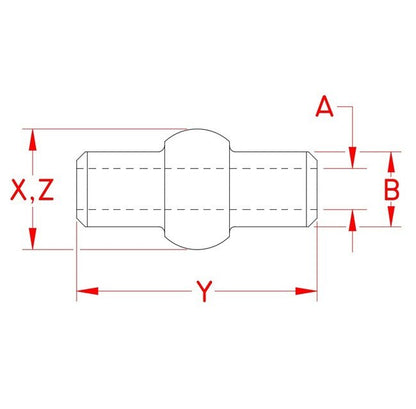

Specifications Dimension A
7/32 in
Specifications Dimension X
0.56 in
Specifications Dimension Y
1.18 in
Specifications Dimension Z
0.56 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.03 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
