MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C

MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C

SKU:MIL-b41da1

High-strength MIL-SPEC stainless steel Eye End Turnbuckle for military uses. Replaces AN 165.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C

MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C

$29.99

Quantity: 1

Claim Your Seller Account

MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C

MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

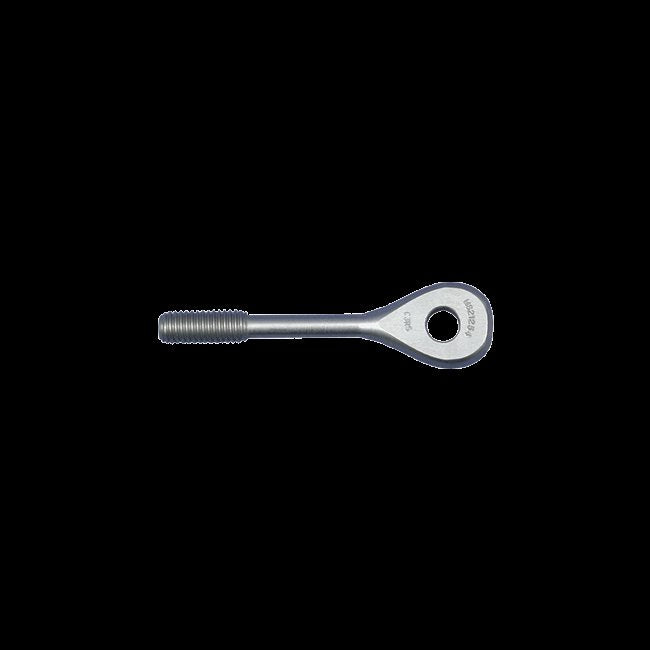

The MIL-SPEC Eye End Turnbuckle Clip Locking MS21254C is a high-quality stainless steel product designed to replace AN 165. With a Wire Rope Dia Ref. of 3/32, this turnbuckle boasts a Minimum Breaking Strength (MBS) of 1,600 lbs, making it durable and reliable for military applications. It features precise dimensions including a 10-32 UNF-3A Thread, .133' Dia. C, .190' Dia. D, .188' J tolerance, and .1638' maximum M dimension, meeting stringent industry standards. The Eye End Turnbuckle is built to perform in demanding environments while ensuring safety and efficiency.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

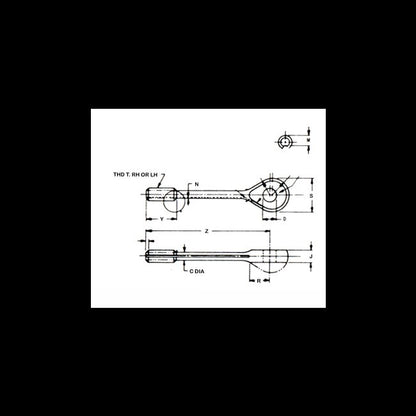

Product Specifications

Specifications C 006 000 Diain
.133
Specifications D 002 000 Diain
.190
Specifications J 005
.188
Specifications Mbs Lbs
1,600
Specifications M Max
.1638
Specifications M Min
.1568
Specifications N Max
.0077
Specifications S Dia
.500
Specifications Thread T Unf 3a
10-32
Specifications Wire Rope Dia Ref
3/32
Specifications Y 047 In
.500
Specifications Z 031 015
1.625
CAGE
0T9L4
NAICS
332999
PSC
5340
