Mil-Spec Fork End Crimp Connector

Mil-Spec Fork End Crimp Connector

SKU:MIL-1d1c1b

Military-grade fork end for secure crimping on 7/32" wire ropes, meets MS 20667-7 spec, durable & reliable.

Regular price $15.99
Regular price Sale price $15.99
Sale

Initiate Order

Mil-Spec Fork End Crimp Connector

Mil-Spec Fork End Crimp Connector

$15.99

Quantity: 1

Claim Your Seller Account

Mil-Spec Fork End Crimp Connector

Mil-Spec Fork End Crimp Connector

$15.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

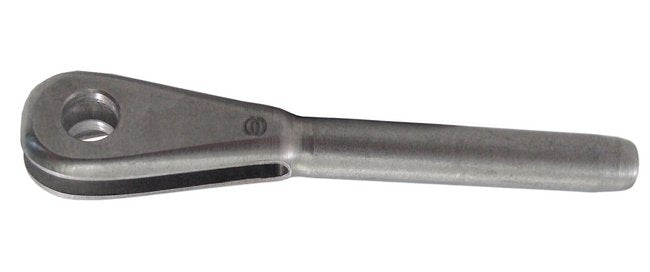

The Mil-Spec Fork End is a high-quality crimp connector designed for easy installation on wire ropes or aircraft cables. Meeting stringent military specification MS 20667-7, this fork end ensures a secure fit for 7/32-inch wire rope diameters. With precise dimensions including A Diam. of 0.427 inches and F dimension of 0.625 inches, this fork end is reliable and durable, supporting a weight of 0.15 lbs per piece. Ideal for military and aerospace applications, this fork end guarantees operational efficiency and safety.

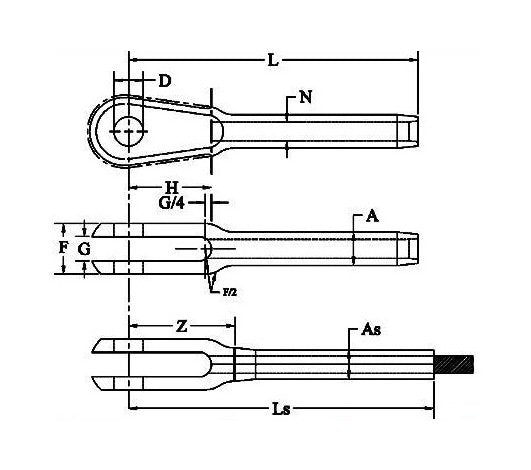

Product Specifications

Specifications As
0.375
Specifications A Diam
0.427
Specifications D Diam
0.313
Specifications F 010 005
0.625
Specifications G 003
0.296
Specifications H
0.97
Specifications Lbs Per Piece
0.15
Specifications Ls
3.74
Specifications L 020 000
3.44
Specifications Mil Spec
MS 20667-7
Specifications N Diam
0.234
Specifications To Fit Wire Rope Dia In
7/32
CAGE
0T9L4
NAICS
332510
PSC
4030
