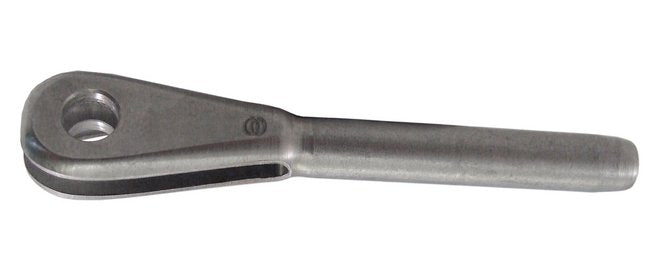

Mil-Spec Fork End Crimp Connector for 7/16" Wire Rope

Name: Mil-Spec Fork End Crimp Connector for 7/16" Wire Rope
Brand: Lexco Cable Manufacturing
SKU: MIL-8d7a2d
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-8d7a2d

Mil-Spec Fork End Crimp Connector for 7/16" Wire Rope. Compliant with MS 20667-14. Ensures secure wire rope connections.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Fork End MS20667 is a precision-engineered crimp connector designed specifically for military applications. Compliant with Mil Spec MS 20667-14, this fork end is crafted to fit 7/16" wire ropes precisely. With dimensions meeting stringent military standards, including A Diam. of 0.781 and L +.020-.000 of 6.402, this fork end ensures secure and durable wire rope connections for critical operations.

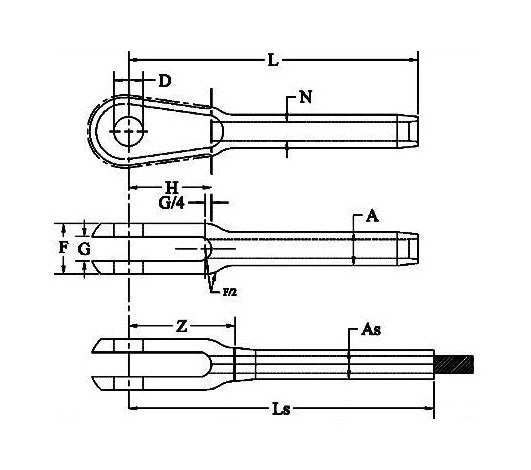

Product Specifications

Specifications As

0.688

Specifications A Diam

0.781

Specifications D Diam

0.562

Specifications F 010 005

0.83

Specifications G 003

0.38

Specifications H

1.776

Specifications Lbs Per Piece

0.775

Specifications Ls

6.57

Specifications L 020 000

6.402

Specifications Mil Spec

MS 20667-14

Specifications N Diam

0.468

Specifications To Fit Wire Rope Dia In

7/16

CAGE

0T9L4

NAICS

332510

PSC

4030
