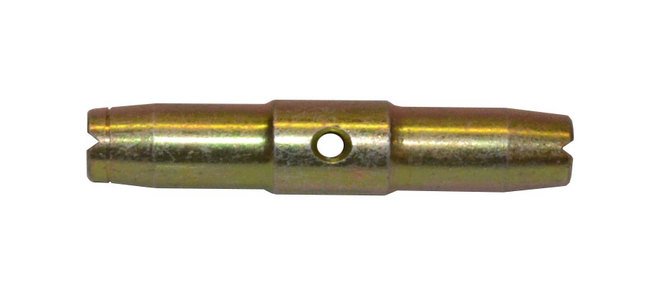

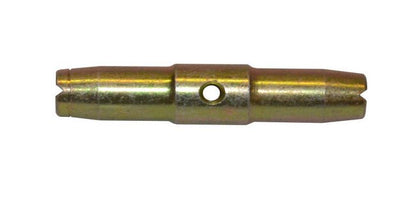

Mil Spec MS21251 Turnbuckle Body

Name: Mil Spec MS21251 Turnbuckle Body
Brand: Lexco Cable Manufacturing
SKU: WIR-fd8d4e
Price: 42.99 USD
Availability: OutOfStock

SKU:WIR-fd8d4e

Premium Mil Spec MS21251 Turnbuckle Body for wire rope assemblies, offering durability and secure installations.

$42.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The MS21251 Cad-Plated Carbon Steel Turnbuckle Body is a high-performance hardware essential for wire rope assemblies. With a Mil Spec MS21251 designation, this turnbuckle boasts impressive specifications including a Wire Rope Dia of 5/16, MBS of 17,500 lbs, and precise dimensions for secure installations. Designed for durability and reliability, it meets stringent industry standards ensuring safety and functionality in various applications.

Product Specifications

Specifications Appl Cable Locking Clip Ms21256

-3

Specifications B 005 Dia

.875

Specifications D 005 Dia

.813

Specifications E 005 Dia

.625

Specifications Lbs Per Piece

.413

Specifications L 031

4.250

Specifications Mbs Lbs

17,500

Specifications Mil Spec

MS21251

Specifications N 031

.656

Specifications P 005

.188

Specifications Thread T Unf 38

1/2-20

Specifications Wire Rope Dia

5/16

CAGE

0T9L4

NAICS

332510

PSC

4030

Mil Spec MS21251 Turnbuckle Body
