Mil. Spec Single Shank Ball - Stainless Steel Swage Fitting
Mil. Spec Single Shank Ball - Stainless Steel Swage Fitting
SKU:MIL-49fd38
Meet military specifications with our precision-made stainless steel swage fitting. Perfect for industrial and military applications.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Mil. Spec Single Shank Ball - Stainless Steel Swage Fitting
$14.99
Quantity: 1
Claim Your Seller Account
Mil. Spec Single Shank Ball - Stainless Steel Swage Fitting
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

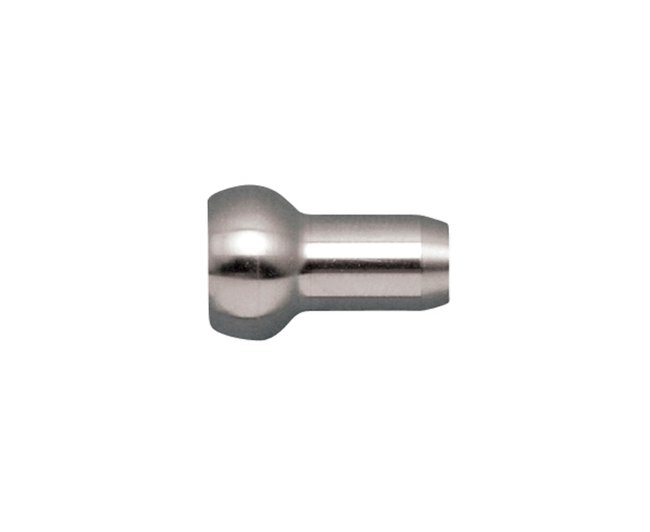

Our Mil. Spec Single Shank Ball is a precision machined stainless steel swage fitting that meets mil. spec #MS20664C, compliant with MIL-DTL-781 and approved for listing in QPL-781. Available in sizes from 1/16" to 5/16", this durable and reliable fitting is perfect for military and industrial applications requiring high-quality performance.
Product Specifications
Specifications After Swage
0.30 in
Specifications Ball After Swage
0.51 in
Specifications Ball Before Swage
0.56 in
Specifications Before Swage
0.35 in

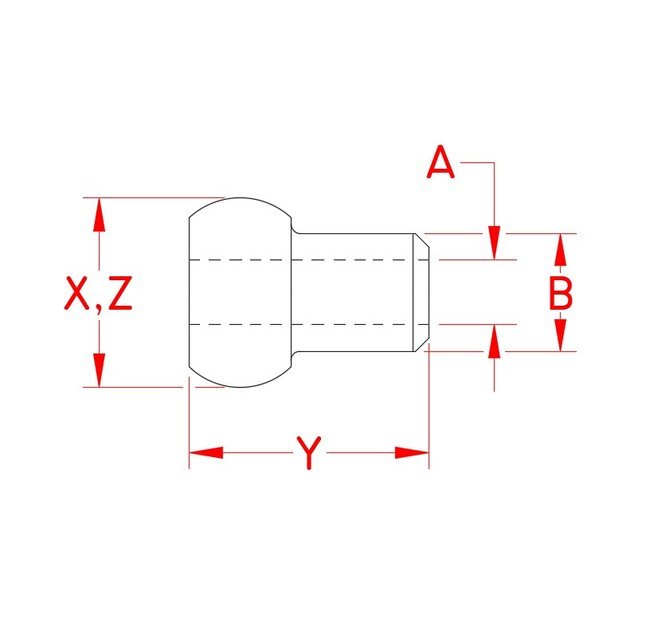

Specifications Dimension A
7/32 in
Specifications Dimension X
0.56 in
Specifications Dimension Y
0.85 in
Specifications Dimension Z
0.56 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.02 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
