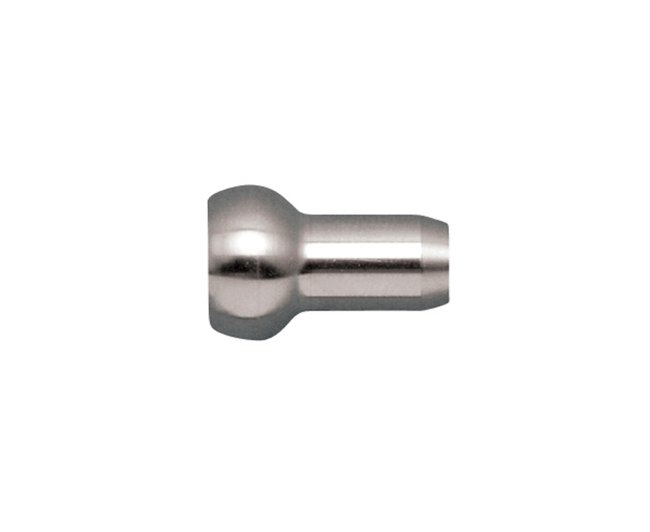

Precision-machined stainless steel Mil. Spec Single Shank Ball meeting MIL-DTL-781 standards for military swage terminals.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mil. Spec Single Shank Ball - Stainless Steel Swage Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Mil. Spec Single Shank Ball - Stainless Steel Swage Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet stringent government MIL-DTL-781 standards with our precision-machined Mil. Spec Single Shank Ball. Crafted from stainless steel, this swage fitting by Suncor is USA-made and available in various sizes. Ideal for military specification swage terminals, it ensures quality and durability, with dimensions tailored to meet institutional requirements.
Product Specifications
Specifications After Swage
0.14 in
Specifications Ball After Swage
0.25 in
Specifications Ball Before Swage
0.28 in
Specifications Before Swage
0.17 in

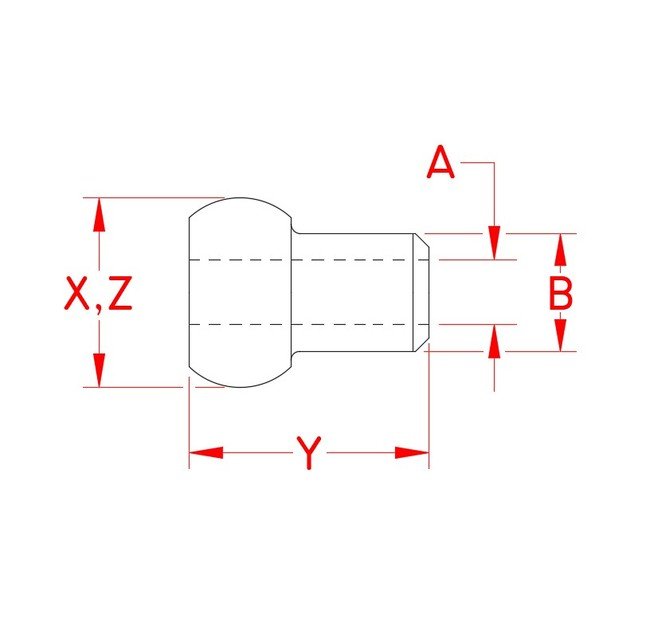

Specifications Dimension A
3/32 in
Specifications Dimension X
0.28 in
Specifications Dimension Y
0.38 in
Specifications Dimension Z
0.28 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight Per 100 Feet
0.01 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
