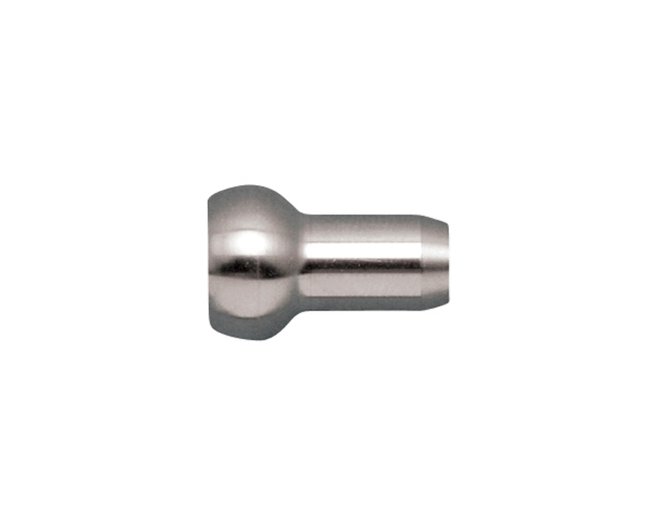

Mil. Spec Stainless Steel Single Shank Ball Swage Terminal
Mil. Spec Stainless Steel Single Shank Ball Swage Terminal
SKU:MIL-b2f0be
Precision-made stainless steel single shank ball swage terminal meeting MIL-DTL-781 & MIL spec #MS20664C for military applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Mil. Spec Stainless Steel Single Shank Ball Swage Terminal
$24.99
Quantity: 1
Claim Your Seller Account
Mil. Spec Stainless Steel Single Shank Ball Swage Terminal
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Mil. Spec Stainless Steel Single Shank Ball Swage Terminal is precision-machined to meet the stringent requirements of mil. spec #MS20664C, MIL-DTL-781, and QPL-781. Crafted from high-quality stainless steel in the USA, this product is available in various sizes from 1/16'' to 5/16''. With dimensions carefully engineered for optimal performance, this swage terminal ensures secure and reliable connections in military applications.
Product Specifications
Specifications After Swage
0.19 in
Specifications Ball After Swage
0.32 in
Specifications Ball Before Swage
0.35 in
Specifications Before Swage
0.22 in

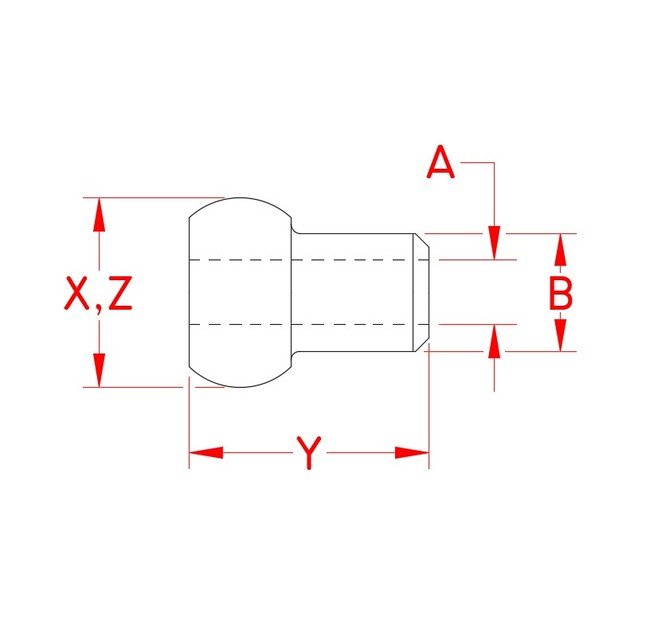

Specifications Dimension A
1/8 in
Specifications Dimension X
0.35 in
Specifications Dimension Y
0.50 in
Specifications Dimension Z
0.35 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight Per 100 Feet
0.60 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
