Mil-Spec Strap Eye End NAS1435-E, Commercial Grade, 3/16 Wire Rope Dia

Name: Mil-Spec Strap Eye End NAS1435-E, Commercial Grade, 3/16 Wire Rope Dia
Brand: Lexco Cable Manufacturing
SKU: MIL-1178c3
Price: 15.99 USD
Availability: OutOfStock

SKU:MIL-1178c3

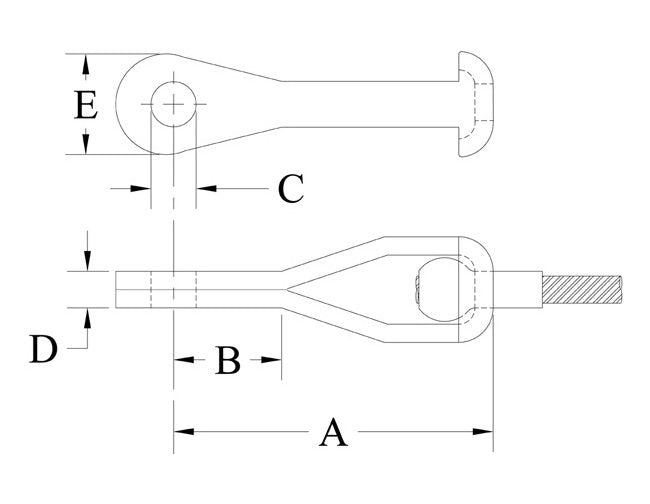

High-quality commercial grade Strap Eye End NAS1435-E for secure wire rope fastening. Dimensions: A: 2-3/16, B: .750, C: .313, D: .255, E: 11/16.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

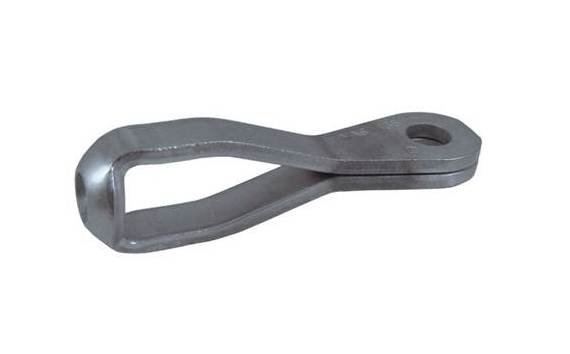

The Mil-Spec Strap Eye End NAS1435-E is a high-quality commercial grade strap designed for crimping on wire rope or aircraft cable. With precise dimensions of A: 2-3/16, B: .750, C: .313, D: .255, E: 11/16, it ensures secure fastening. Weighing only .083 lbs per piece, this durable eye end offers reliable performance for various applications.

Product Specifications

Specifications A

2-3/16

Specifications B

.750

Specifications C

.313

Specifications D

.255

Specifications E

11/16

Specifications Lbs Per Piece

.083

Specifications Spec

Commercial

Specifications Wire Rope Dia

3/16

CAGE

0T9L4

NAICS

332510

PSC

4030
