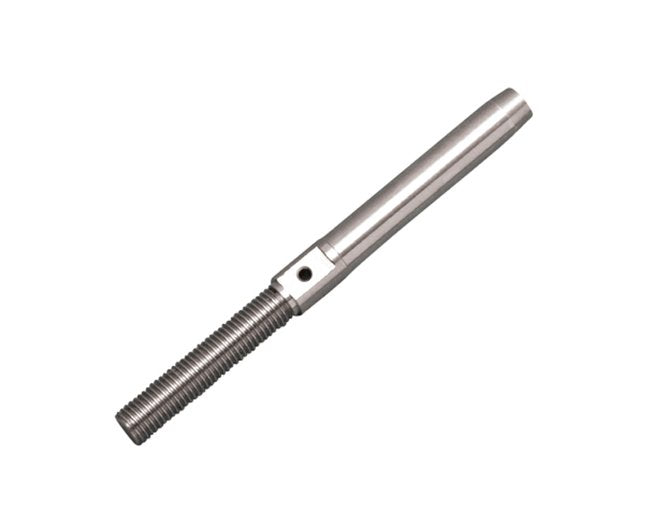

Mil-Spec UNF Left Hand Swage Stud
Mil-Spec UNF Left Hand Swage Stud
SKU:MIL-05e086
Precision-machined stainless steel swage stud meeting MIL-DTL-781 & QPL-781, available in various sizes. USA-made for durability.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.


The Mil-Spec UNF Left Hand Swage Stud is a precision-machined stainless steel terminal that meets stringent military specifications. Compliant with MIL-DTL-781 and listed on QPL-781, this swage stud ensures exceptional quality and performance. Available in various sizes from 1/16" to 3/8", it features precise dimensions and is proudly made in the USA, meeting the highest standards of fabrication. Ideal for applications requiring reliable and durable swaging solutions.

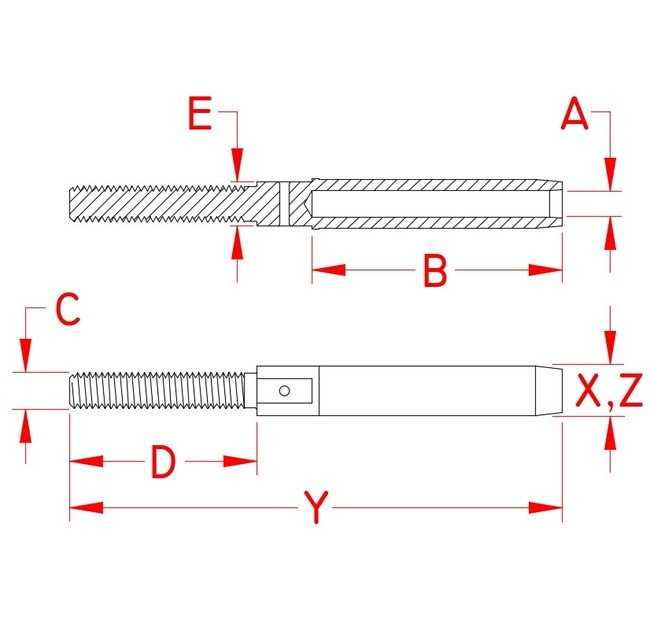

Product Specifications
Specifications Dimension A
5/32 in
Specifications Dimension B
1.76 in
Specifications Dimension C
0.25 in
Specifications Dimension D
1.38 in
Specifications Dimension E
0.25 in
Specifications Dimension X
0.30 in
Specifications Dimension Y
3.63 in
Specifications Dimension Z
0.30 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.04 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
