Mil-Spec UNF Left Hand Swage Stud - Stainless Steel
Mil-Spec UNF Left Hand Swage Stud - Stainless Steel
SKU:MIL-8826a4
High-quality Mil-Spec UNF Left Hand Swage Stud in stainless steel, precision machined for durability and reliability. Meets MIL-DTL-781.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Mil-Spec UNF Left Hand Swage Stud - Stainless Steel
$12.99
Quantity: 1
Claim Your Seller Account
Mil-Spec UNF Left Hand Swage Stud - Stainless Steel
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

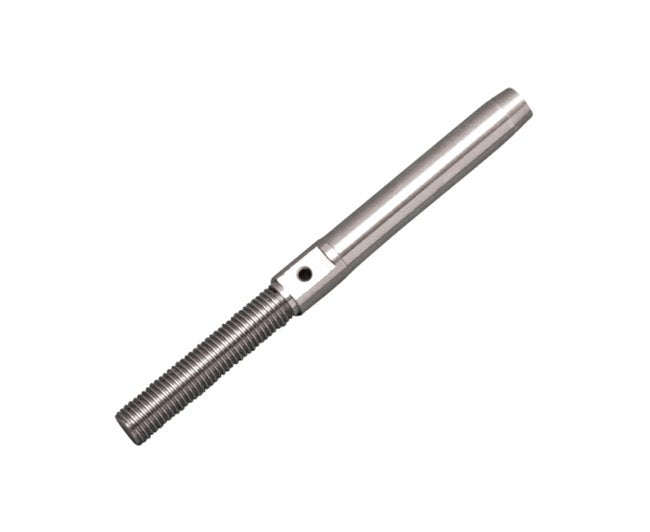

The Mil-Spec UNF Left Hand Swage Stud is a precision machined terminal that meets mil. spec #MS21259, MIL-DTL-781, and is QPL-781 listed. Made in the USA from high-quality stainless steel, it assures durability and reliability. With UNF threads and available in various sizes, it offers a secure, precise fit ideal for military and industrial applications.

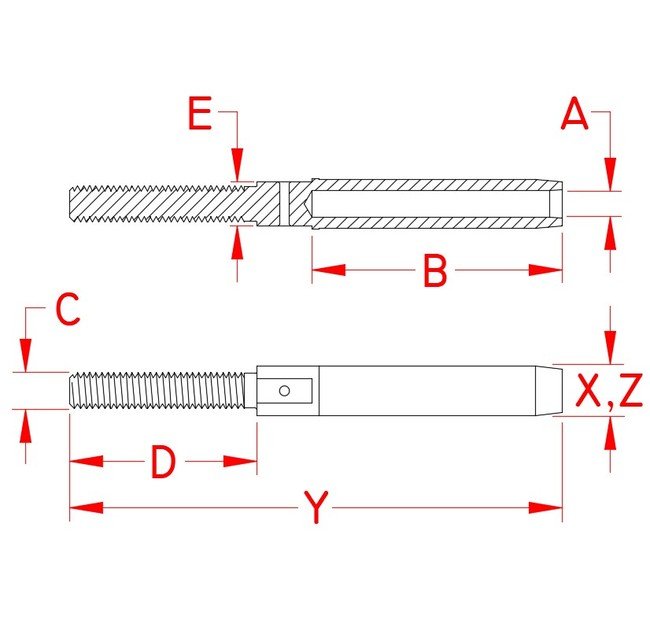

Product Specifications
Specifications Dimension A
1/4 in
Specifications Dimension B
2.51 in
Specifications Dimension C
0.38 in
Specifications Dimension D
1.75 in
Specifications Dimension E
0.44 in
Specifications Dimension X
0.49 in
Specifications Dimension Y
4.94 in
Specifications Dimension Z
0.49 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.17 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
