Mil-Spec UNF Swage Stud (Right Hand) - Stainless Steel
Mil-Spec UNF Swage Stud (Right Hand) - Stainless Steel
SKU:MIL-7cf37d
Explore our Mil-Spec UNF Swage Stud (Right Hand) - Precision-engineered stainless steel terminal for reliable performance.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Mil-Spec UNF Swage Stud (Right Hand) - Stainless Steel
$14.99
Quantity: 1
Claim Your Seller Account
Mil-Spec UNF Swage Stud (Right Hand) - Stainless Steel
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

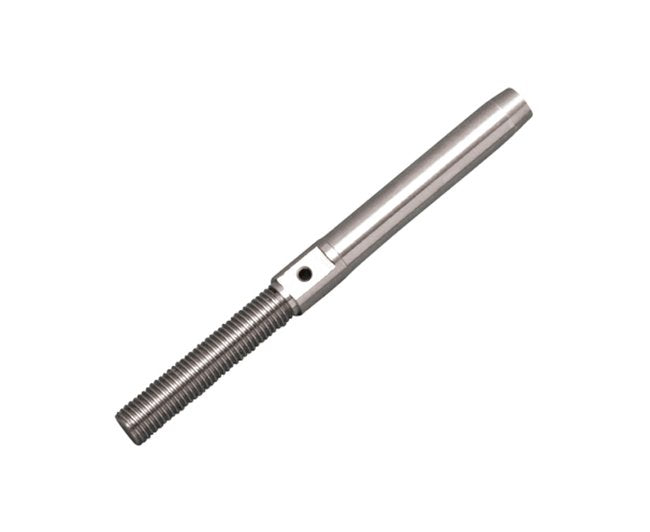

The Mil-Spec UNF Swage Stud (Right Hand) is a precision-machined stainless steel terminal that meets stringent military specification #MS21259. Compliant with MIL-DTL-781 and listed on QPL-781, this swage stud features UNF right-hand threading in sizes ranging from 1/16" to 3/8". Crafted in the USA by Suncor with top-tier quality and dimensional accuracy, this durable stud is ideal for applications requiring precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

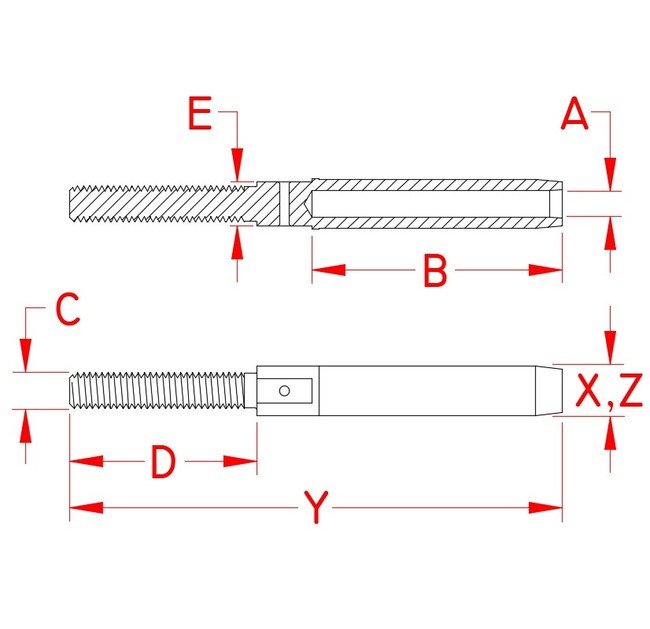

Specifications Dimension A
1/8 in
Specifications Dimension B
1.51 in
Specifications Dimension C
0.25 in
Specifications Dimension D
1.38 in
Specifications Dimension E
0.25 in
Specifications Dimension X
0.25 in
Specifications Dimension Y
3.33 in
Specifications Dimension Z
0.25 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Made in USA
Specifications Material
Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
MIL-DTL-781
Specifications Weight
0.03 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
