Military-Grade Audio Plugs (MIL-C-55116)
Military-Grade Audio Plugs (MIL-C-55116)
SKU:M55-272949
Reliable Military-Grade Audio Plugs with stainless steel shell, gold-plated brass contacts, and bayonet coupling for rugged applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Military-Grade Audio Plugs (MIL-C-55116)
$29.99
Quantity: 1
Claim Your Seller Account
Military-Grade Audio Plugs (MIL-C-55116)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your connectivity with our Military-Grade Audio Plugs (MIL-C-55116) that are designed to meet ruggedized commercial and military standards. With a stainless steel shell and gold-plated brass contacts, these plugs ensure reliable performance in harsh environments. The bayonet coupling and coil spring strain relief provide secure connections and durability. Tested to withstand extreme temperatures, water immersion, and high mating cycles, these plugs deliver superior reliability for critical applications.
Product Specifications
Specifications Alternate Pn
U-229 B/U
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
5

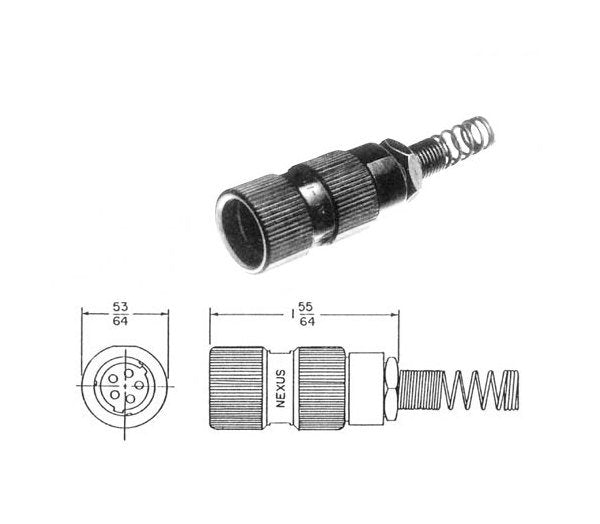

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
