Military-Grade Audio Plugs - MIL-C-55116 Compliant
Military-Grade Audio Plugs - MIL-C-55116 Compliant
SKU:M55-bd8976

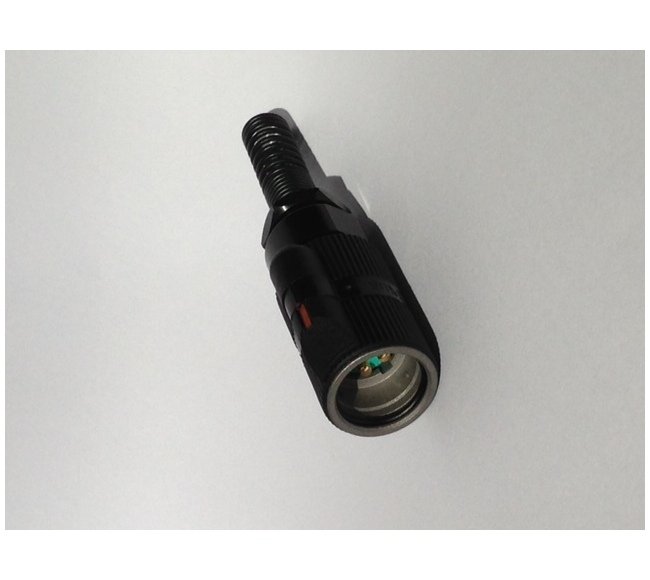

Rugged MIL-C-55116 Audio Plugs for commercial and military applications. Solder cup terminals, stainless steel shell, gold-plated contacts, and high durability.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Military-Grade Audio Plugs - MIL-C-55116 Compliant
$24.99
Quantity: 1
Claim Your Seller Account
Military-Grade Audio Plugs - MIL-C-55116 Compliant
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled durability and performance with our MIL-C-55116 Audio Plugs. These ruggedized commercial and military-grade plugs feature 6 solder cup terminals, stainless steel shell material, gold-plated brass contacts, and thermoset plastic inserts. With a temperature range of -55 to 85°C, 3000 mating cycles, and water immersion resistance up to 6 feet for 48 hours, these plugs are designed for reliability in demanding environments. Meet strict procurement standards with confidence.
Product Specifications
Specifications Alternate Pn
M55116/4 | U-229 Type
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Solder
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6

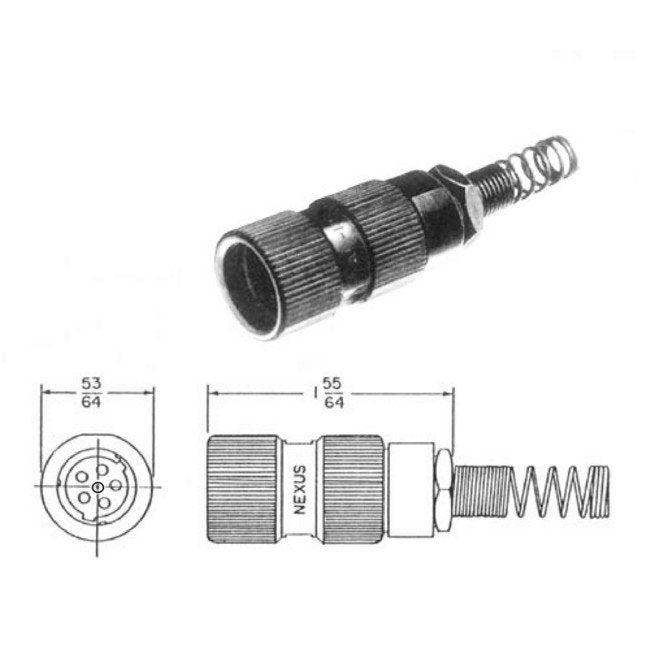

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.859 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Wire
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
