Military-Grade Audio Plugs with 6 Conductors
Military-Grade Audio Plugs with 6 Conductors
SKU:M55-5c2941
Rugged MIL-C-55116 Audio Plugs with 6 conductors, stainless steel shell & gold-plated contacts for reliable connections in demanding environments.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Military-Grade Audio Plugs with 6 Conductors
$29.99
Quantity: 1
Claim Your Seller Account
Military-Grade Audio Plugs with 6 Conductors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

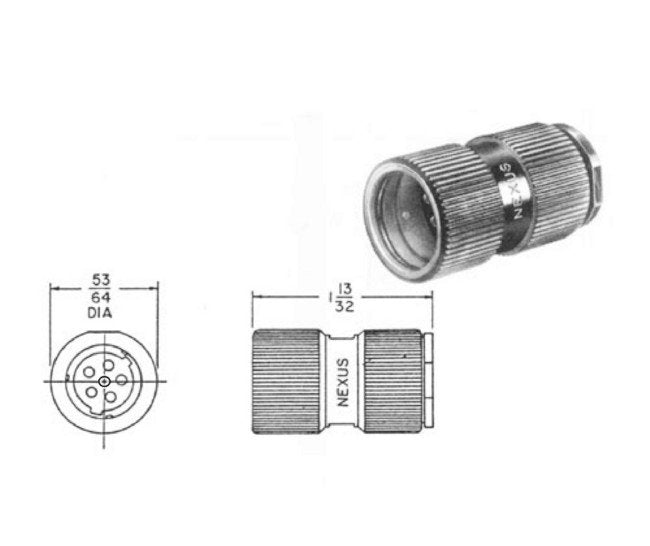

Experience reliable connectivity with our MIL-C-55116 Audio Plugs designed for ruggedized commercial and military use. These six-conductor plugs, with an overall diameter of .828 in and length of 1.406 in, ensure secure connections in demanding environments. Featuring stainless steel shell material, gold-plated brass contacts, and a molded rubber strain relief, these plugs excel in durability and performance. With a current rating of 0.5A, voltage rating of 60V, and a temperature range of -55 to 85 °C, they are built to withstand harsh conditions. Meeting stringent MIL-C-55116 specifications, these plugs guarantee superior quality and longevity.
Product Specifications
Specifications Alternate Pn
U-182-B/U
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
6
Specifications Overall Diameter
.828 in
Specifications Overall Length
1.406 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Strain Relief
Molded
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
