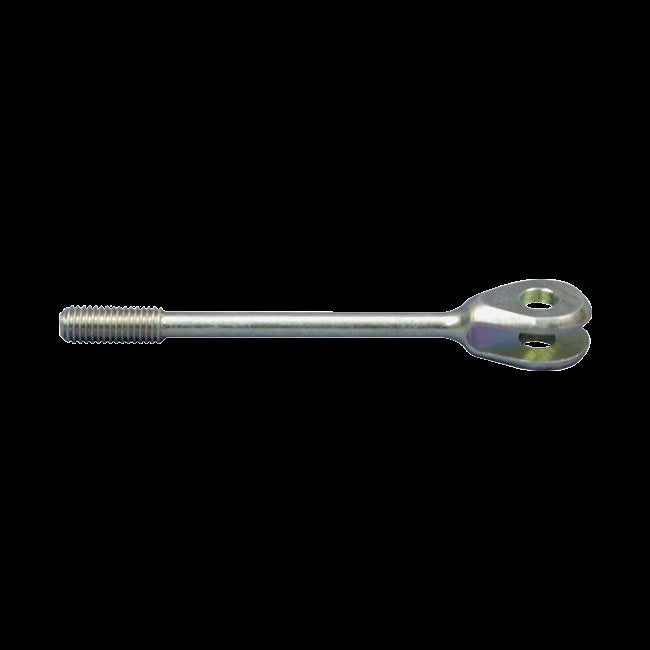

Military Grade Clevis Turnbuckle Clip Locking MS21252C

Name: Military Grade Clevis Turnbuckle Clip Locking MS21252C
Brand: Lexco Cable Manufacturing
SKU: MIL-dc423c
Price: 39.99 USD
Availability: OutOfStock

SKU:MIL-dc423c

Explore our Military Grade Clevis Turnbuckle Clip Locking MS21252C for secure and reliable fastening in heavy-duty applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Military Grade Clevis Turnbuckle Clip Locking MS21252C, compliant with Military Specification standards, is a robust and reliable fastening solution designed to withstand heavy-duty applications. With a Wire Rope Diameter Reference of 5/32 inches and a Minimum Breaking Strength of 3,200 lbs, this turnbuckle ensures secure connections in challenging environments. Meeting rigorous quality standards (NSN: 5340-01-586-6536), this product offers precise dimensions and superior strength to meet the demands of military and industrial settings.

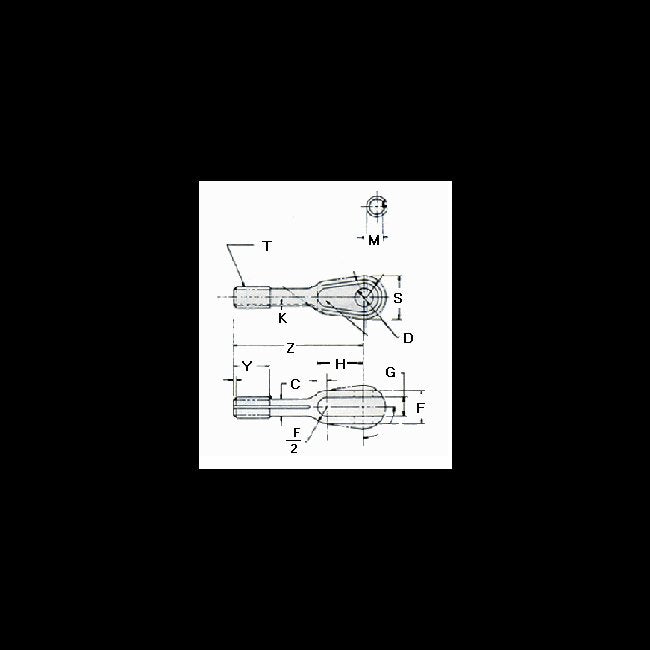

Product Specifications

Specifications C 006 000 Diain

.189

Specifications D 002 000 Diain

.250

Specifications F 010 005

.452

Specifications G 010 000

.218

Specifications H

.531

Specifications K Max

.0103

Specifications Mbs Lbs

3,200

Specifications M Max

.2224

Specifications M Min

.2152

Specifications Nsn

5340-01-586-6536, 5340015866536

Specifications S Spher Dia

.641

Specifications Thread T Unf 3a

1/4-28

Specifications Wire Rope Dia Ref

5/32

Specifications Y 047

.625

Specifications Z 047

1.844

CAGE

0T9L4

NAICS

332999

PSC

5340
