Military Grade Locking Studs MS21260
Military Grade Locking Studs MS21260
SKU:MIL-bb2fb2
High-quality stainless steel locking studs for military and industrial applications. Specify RH or LH thread.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Military Grade Locking Studs MS21260
$29.99
Quantity: 1
Claim Your Seller Account
Military Grade Locking Studs MS21260
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

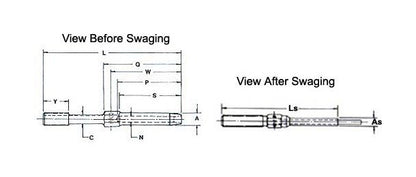

The Military Grade Locking Studs MS21260 are high-quality stainless steel studs designed for secure fastening. With specifications to fit wire rope dia of 1/8 inch and thread size "B" of 1/4-28, these studs offer precision and durability. Meeting NSN 4030-00-580-6789 specifications, they are ideal for military and industrial applications. Specify RH or LH thread for customized use. Ensure reliable performance and compliance with stringent procurement standards.
Product Specifications
Specifications As Diam
.219
Specifications A Diam
.250
Specifications C 006 000 Diain
.195
Specifications Lbs Per Piece
.040
Specifications Ls Ref
4.28
Specifications L 063 In
4.020
Specifications Nsn
4030-00-580-6789, 4030005806789
Specifications N Diam
.141
Specifications P In
1.511
Specifications Q 031 016 In
1.863
Specifications R 062 000 Diameter In
.098
Specifications S 062 000 In
1.438
Specifications Thread Size B
1/4-28
Specifications To Fit Wire Rope Dia In
1/8
Specifications W In
1.682
Specifications Y 047 In
.563
CAGE
0T9L4
NAICS
332510
PSC
4030
