Military-Grade Locking Studs MS21260 for Wire Rope, Stainless Steel
Military-Grade Locking Studs MS21260 for Wire Rope, Stainless Steel
SKU:MIL-3c41c0
Durable stainless steel Locking Studs MS21260 for precise wire rope security. RH or LH thread options.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Military-Grade Locking Studs MS21260 for Wire Rope, Stainless Steel
$14.99
Quantity: 1
Claim Your Seller Account
Military-Grade Locking Studs MS21260 for Wire Rope, Stainless Steel
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

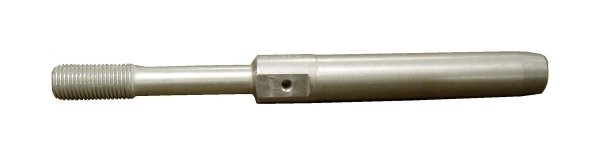

Enhance the security of wire rope installations with our Military Specification Locking Studs MS21260. Made from durable stainless steel, these studs come with the options for both right-hand and left-hand threads. With precise dimensions to fit 1/8-inch wire rope and featuring specifications meeting stringent military standards, these locking studs provide reliability and safety in demanding environments.

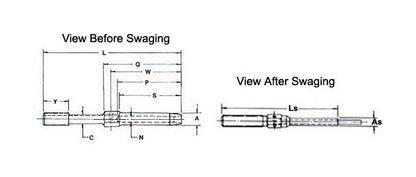

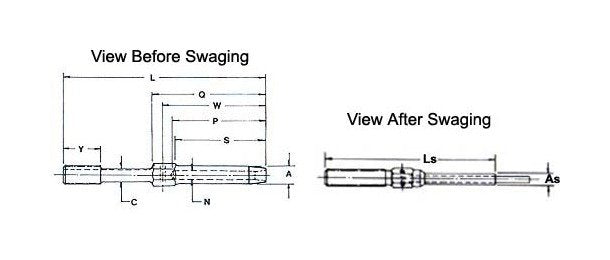

Product Specifications
Specifications As Diam
.219
Specifications A Diam
.250
Specifications C 006 000 Diain
.195
Specifications Lbs Per Piece
.040
Specifications Ls Ref
4.28
Specifications L 063 In
4.020
Specifications Nsn
4030-00-580-6788, 4030005806788
Specifications N Diam
.141
Specifications P In
1.511
Specifications Q 031 016 In
1.863
Specifications R 062 000 Diameter In
.098
Specifications S 062 000 In
1.438
Specifications Thread Size B
1/4-28
Specifications To Fit Wire Rope Dia In
1/8
Specifications W In
1.682
Specifications Y 047 In
.563
CAGE
0T9L4
NAICS
332510
PSC
4030
