Military Grade Stainless Steel Locking Studs MS21260
Military Grade Stainless Steel Locking Studs MS21260
SKU:MIL-575d44
Durable stainless steel Locking Studs meeting military standards for precise security applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Military Grade Stainless Steel Locking Studs MS21260
$24.99
Quantity: 1
Claim Your Seller Account
Military Grade Stainless Steel Locking Studs MS21260
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

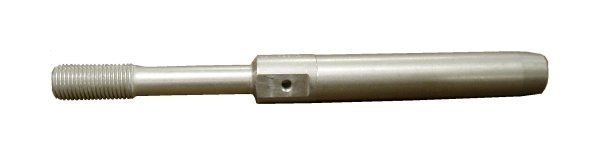

Enhance your security system with our Military Specification Locking Studs MS21260. Made of durable stainless steel, these studs are designed to fit 7/32" wire ropes with precision. The RH or LH thread options provide versatility for various applications. With dimensions meeting strict standards, including Thread Size "B" of 3/8-24 and NSN 4030-00-580-6778, these studs ensure reliable performance and compliance with government and military specifications.

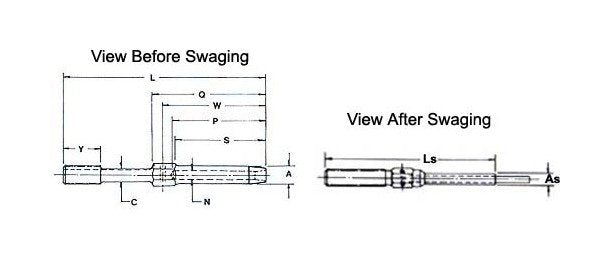

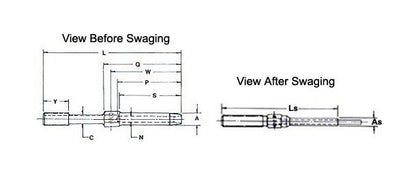

Product Specifications
Specifications As Diam
.375
Specifications A Diam
.427
Specifications C 006 000 Diain
.306
Specifications Lbs Per Piece
.130
Specifications Ls Ref
5.21
Specifications L 063 In
4.914
Specifications Nsn
4030-00-580-6778, 4030005806778
Specifications N Diam
.234
Specifications P In
2.261
Specifications Q 031 016 In
2.757
Specifications R 062 000 Diameter In
.098
Specifications S 062 000 In
2.188
Specifications Thread Size B
3/8-24
Specifications To Fit Wire Rope Dia In
7/32
Specifications W In
2.518
Specifications Y 047 In
.875
CAGE
0T9L4
NAICS
332510
PSC
4030
