Military Grade Stainless Steel Locking Studs MS21260

Name: Military Grade Stainless Steel Locking Studs MS21260
Brand: Lexco Cable Manufacturing
SKU: MIL-83a5ce
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-83a5ce

Military-grade stainless steel locking studs for secure fastening in military and institutional settings. Precision-engineered to meet MIL-SPEC standards.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The military-grade Locking Studs MS21260 (AN 666) (NAS 650), made from premium stainless steel, are designed to meet the rigorous demands of government and institutional procurement. Featuring a RH or LH thread option, these studs are precision-engineered to fit 3/16" wire rope dia, with specifications compliant with MIL-SPEC standards. Ensure secure fastening with their precise dimensions and high durability, meeting the strict requirements of military applications.

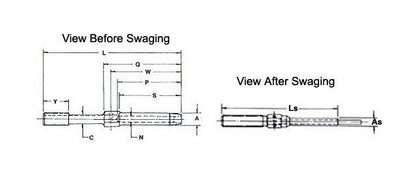

Product Specifications

Specifications As Diam

.313

Specifications A Diam

.359

Specifications C 006 000 Diain

.245

Specifications Lbs Per Piece

.086

Specifications Ls Ref

4.78

Specifications L 063 In

4.612

Specifications Nsn

4030-00-580-6780, 4030005806780

Specifications N Diam

.203

Specifications P In

2.011

Specifications Q 031 016 In

2.455

Specifications R 062 000 Diameter In

.098

Specifications S 062 000 In

1.938

Specifications Thread Size B

5/16-24

Specifications To Fit Wire Rope Dia In

3/16

Specifications W In

2.237

Specifications Y 047 In

.750

CAGE

0T9L4

NAICS

332510

PSC

4030
