Military-Grade Telephone Plug
Military-Grade Telephone Plug
SKU:TEL-97495b
Ruggedized Military Telephone Plug with 4 Conductors, High Performance Standards
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Military-Grade Telephone Plug
$24.99
Quantity: 1
Claim Your Seller Account
Military-Grade Telephone Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

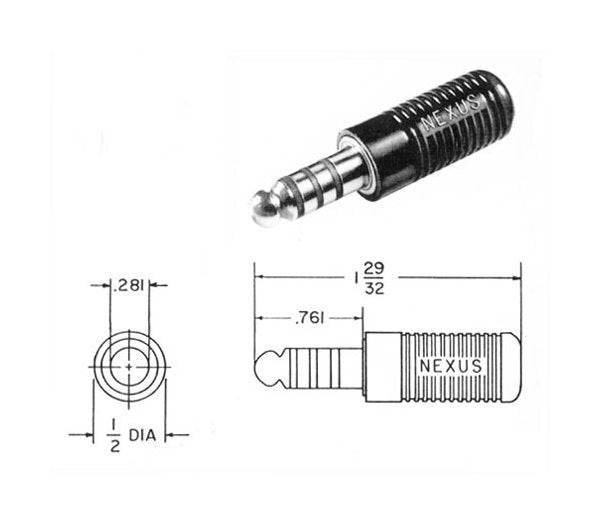

The Military-Grade Telephone Plug is designed for ruggedized commercial and military applications, featuring 4 conductors with sturdy plastic shell and nickel-plated brass contacts. With an overall diameter of .500 in and meeting stringent contact resistance and insulation resistance standards, this plug ensures reliable connectivity in demanding environments. Pre-tinned solder contact terminals and high dielectric voltage withstand make it a trusted choice for secure communications.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Body Material
Plastic
Specifications Conductors
4
Specifications Contact Diameter
.281 in
Specifications Contact Length
.761 in
Specifications Contact Material
Nickel Plated Brass
Specifications Contact Resistance
⤠.02 O
Specifications Dielectric Withstanding Voltage Rms
⥠500 V
Specifications Insertion Force Maximum
13 lb
Specifications Insulation Resistance
⥠1,000 mO
Specifications Overall Diameter
.500 in
Specifications Overall Length
1.906 in
Specifications Shell Material
Plastic
Specifications Solder Contact Terminals
Pre-tinned over Nickel Plating
Specifications Withdrawal Force
6 to 10 lb
