Military Spec Stainless Steel Studs MS21259
Military Spec Stainless Steel Studs MS21259
SKU:MIL-131863
High-quality stainless steel studs meeting military specs for secure wire rope connections. RH or LH thread options available.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

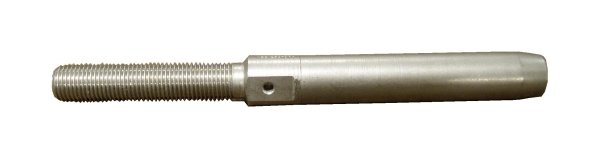

The Military Spec Stainless Steel Studs MS21259 (AN 666) are precision-engineered for durability and reliability. Made from premium stainless steel, these studs feature specifications to fit wire rope diameter of 7/32 inches, ensuring a secure and robust connection. With RH or LH thread options, these studs provide versatile usability in various applications. Designed to meet stringent military specifications, these studs offer exceptional performance and longevity.

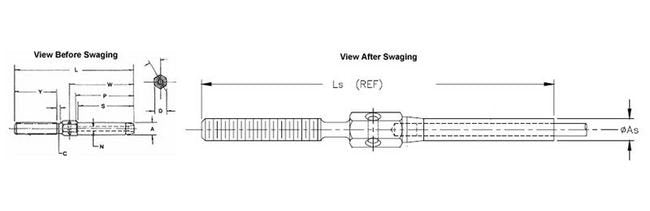

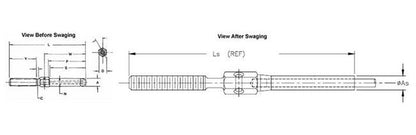

Product Specifications
Specifications As Diam
.375
Specifications A Diam
.427
Specifications C Diam In
.347
Specifications D In
.438
Specifications Lbs Per Piece
.12
Specifications Ls Ref
4.81
Specifications L 015 000 In
4.516
Specifications N Diam
.234
Specifications P In
2.261
Specifications R 005 000 Diameter In
.098
Specifications S 062 000 In
2.188
Specifications Thread Size B
3/8-24
Specifications To Fit Wire Rope Dia In
7/32
Specifications W 016 In
2.518
Specifications Y 063 000 In
1.625
CAGE
0T9L4
NAICS
332510
PSC
4030
