Military Specification Audio Plugs (MIL-C-55116) for Ruggedized Applications
Military Specification Audio Plugs (MIL-C-55116) for Ruggedized Applications
SKU:M55-f172d4
Enhance audio connections with MIL-C-55116 Audio Plugs for ruggedized commercial/military use. Stainless steel shell, 5 contacts, durable design.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Military Specification Audio Plugs (MIL-C-55116) for Ruggedized Applications
$29.99
Quantity: 1
Claim Your Seller Account
Military Specification Audio Plugs (MIL-C-55116) for Ruggedized Applications
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your audio connections with our MIL-C-55116 Audio Plugs designed for ruggedized commercial and military environments. These plugs feature stainless steel shell material with bayonet coupling for secure connections. With 5 contacts, a 3000 mating cycle lifespan, and a temperature range of -55 to 85 ºC, these plugs ensure reliable performance. Gold-plated brass contacts with thermoset plastic insert material provide durability and quality signal transmission. Meet demanding requirements with contact resistance of .050 O and voltage rating up to 60 V. Ideal for critical applications where performance and reliability are paramount.
Product Specifications
Specifications Alternate Pn
U-182 B/U
Specifications Application
Ruggedized Commercial / Military
Specifications Connector Style
Plug
Specifications Contact Depression
1.25-1.75 lbs per contact
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
Crimp
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level Rmv
500 V
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications Mating
Bayonet Coupling
Specifications Mating Cycles
3000
Specifications Number Of Contacts
5

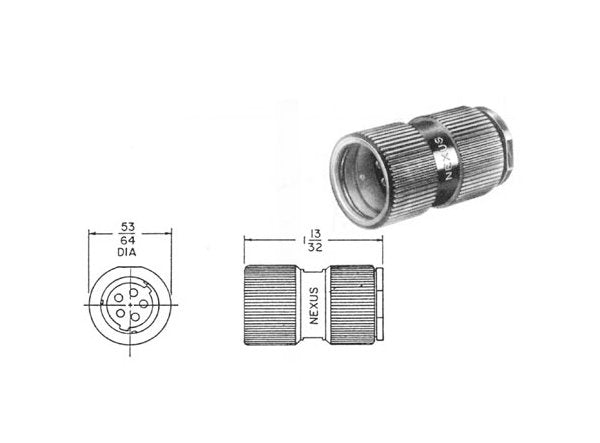

Specifications Overall Diameter
.828 in
Specifications Overall Length
1.406 in
Specifications Shell Material
Stainless Steel, 303, Passivated
Specifications Standard
MIL-C-55116
Specifications Strain Relief
Molded
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
Specifications Water Immersion
6 feet of water up to 48 hours (mated and unmated)
