Military Specification Stainless Steel Studs MS21259
Military Specification Stainless Steel Studs MS21259
SKU:MIL-b9dd17
Military Specification Stainless Steel Studs for wire rope, RH/LH thread options - precise dimensions for reliability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Military Specification Stainless Steel Studs MS21259
$29.99
Quantity: 1
Claim Your Seller Account
Military Specification Stainless Steel Studs MS21259
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your procurement process with the Military Specification Stainless Steel Studs MS21259. Constructed with precision to fit wire rope diameter of 7/16 inches, featuring RH or LH thread options. With dimensions meeting exacting standards, this product ensures reliability and durability in demanding applications.

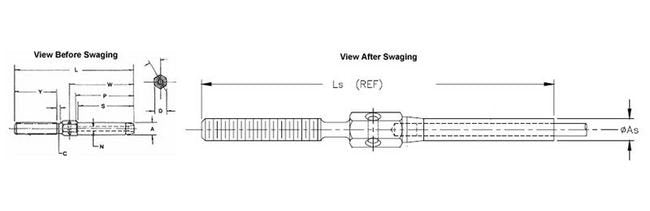

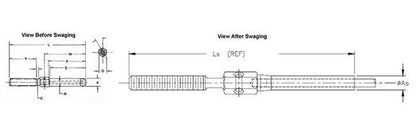

Product Specifications
Specifications As Diam
.688
Specifications A Diam
.781
Specifications C Diam In
.592
Specifications D In
.812
Specifications Lbs Per Piece
.625
Specifications Ls Ref
7.91
Specifications L 015 000 In
7.437
Specifications N Diam
.468
Specifications P In
4.011
Specifications S 062 000 In
3.938
Specifications Thread Size B
5/8-18
Specifications To Fit Wire Rope Dia In
7/16
Specifications W 016 In
4.375
Specifications Y 063 000 In
2.500
CAGE
0T9L4
NAICS
332510
PSC
4030
