Military Specification Stainless Steel Studs MS21259

Name: Military Specification Stainless Steel Studs MS21259
Brand: Lexco Cable Manufacturing
SKU: MIL-ce39a8
Price: 24.99 USD
Availability: OutOfStock

SKU:MIL-ce39a8

High-strength Military Spec Stainless Steel Studs MS21259 for precise installations in military applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

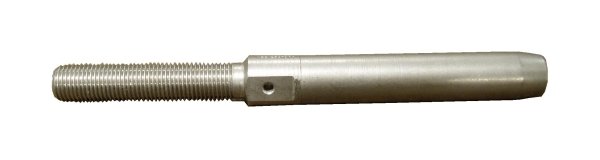

The Military Specification Stainless Steel Studs MS21259, also known as AN 666, are precision-engineered for exceptional durability and performance. These studs feature stainless steel construction and come with the option to specify RH or LH thread. With specifications including 9/16 inch wire rope diameter compatibility, (3/4)-16 thread size "B", and precise dimensions for reliable installation, these studs are designed to meet the stringent requirements of military applications, ensuring superior strength and corrosion resistance.

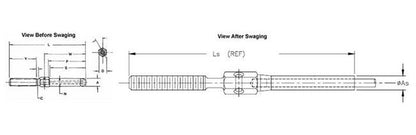

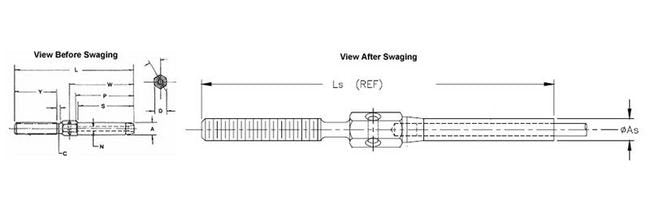

Product Specifications

Specifications As Diam

0.984

Specifications A Diam

0.984

Specifications C Diam In

0.717

Specifications D In

Specifications Lbs Per Piece

Specifications Ls Ref

9.72

Specifications L 015 000 In

9.125

Specifications N Diam

0.594

Specifications P In

5.011

Specifications S 062 000 In

4.938

Specifications Thread Size B

(3/4)-16

Specifications To Fit Wire Rope Dia In

9/16

Specifications W 016 In

5.468

Specifications Y 063 000 In

3.000

CAGE

0T9L4

NAICS

332510

PSC

4030

Military Specification Stainless Steel Studs MS21259
