Military Specification Stainless Steel Studs MS21259

Name: Military Specification Stainless Steel Studs MS21259
Brand: Lexco Cable Manufacturing
SKU: MIL-7280b8
Price: 29.99 USD
Availability: OutOfStock

SKU:MIL-7280b8

Precision-engineered Military Specification Stainless Steel Studs for secure and durable fastening in aerospace and industrial applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

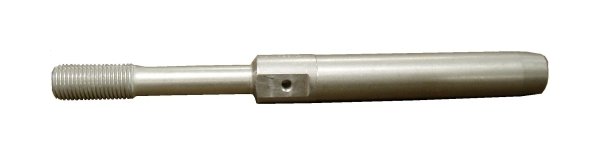

The Military Specification Stainless Steel Studs MS21259 are precision-engineered to meet the stringent requirements of military and institutional applications. Crafted from premium stainless steel with the option to specify RH or LH thread, these studs boast exceptional durability and corrosion resistance. With precise dimensions to fit 5/8" wire rope and featuring a thread size of (7/8)-14, they ensure secure fastening in critical applications. Our studs are designed to withstand high loads and harsh environments, making them ideal for military, aerospace, and industrial uses.

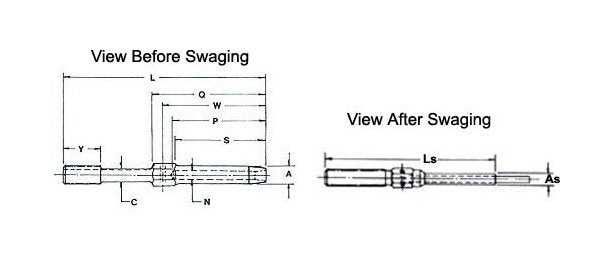

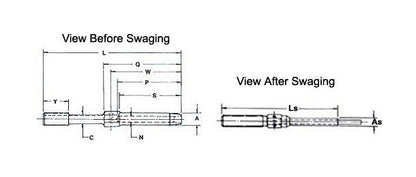

Product Specifications

Specifications As Diam

Specifications A Diam

1.109

Specifications C Diam In

0.842

Specifications D In

1.125

Specifications Lbs Per Piece

1.5

Specifications Ls Ref

11.06

Specifications L 015 000 In

10.375

Specifications N Diam

0.656

Specifications P In

5.511

Specifications S 062 000 In

5.438

Specifications Thread Size B

(7/8)-14

Specifications To Fit Wire Rope Dia In

5/8

Specifications W 016 In

6.093

Specifications Y 063 000 In

3.500

CAGE

0T9L4

NAICS

332510

PSC

4030
