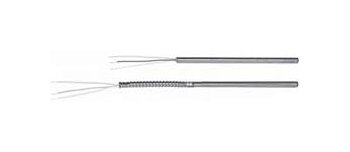

The MINCO Tip-Sensitive Copper Tip Sensor Probe is expertly designed for superior conductivity and rapid responsiveness. Constructed with a copper alloy sensing tip, this probe offers precise temperature sensing, indicating tip temperature for enhanced accuracy. Ideal for use in thermowells, this probe is available in dual or single elements with options for 2, 3, or 4 leadwires, ensuring reliable performance in a variety of environments.
Product Specifications
Specifications Case Style
Maximum case length: 48" (1220 mm), longer on special order | Minimum case length:Single element probes: 2.8" (71.1 mm), Dual element probes: 4.0" (101.6 mm). | Stainless steel with copper alloy tip.
Specifications Elements
Dual | Single
Specifications Insulation Resistance
Dual element probes: 100 megohms min. at 100 VDC, between elements and leads to case. | Single element probes: 1000 megohms min. at 500 VDC, leads to case.
Specifications Leads
2, 3, or 4 leadwires, stranded copper with PTFE insulation. AWG 22, except 0.188" diameter dual probes AWG 24. For 2-lead RTDs add 0.03 O per foot (0.05 O per foot for 0.188" diameter dual probes) of combined case and lead length to element tolerance. Cop
Specifications Normally In Stock
Yes
Specifications Pressure Rating
100 psi | 6.9 bar
Specifications Sensor Type
Resistance Temperature Detector (RTD) | Thermocouple
Specifications Shock
Withstands 100 Gâs min. sine wave shock of 8 milliseconds duration
Specifications Temperature Range
-50 to 260°C | -58 to 500°F
Specifications Time Constant
2.0 seconds typical in moving water. 3.0 seconds for dual element models.
Specifications Units Per Package
1
Specifications Vibration
Withstands 10 to 2000 Hz at 20 Gâs min. per MIL-STD-202, Method 204, Test Condition D
