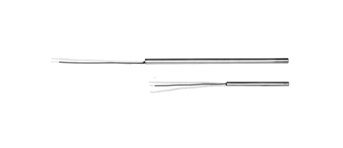

MINCO Fast Response All Stainless Steel Sensor Probe - RTD
MINCO Fast Response All Stainless Steel Sensor Probe - RTD
SKU:MIN-e515df
Enhanced MINCO Sensor Probe with rapid 2-second response time and durable stainless steel construction for high-pressure applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
MINCO Fast Response All Stainless Steel Sensor Probe - RTD
$79.99
Quantity: 1
Claim Your Seller Account
MINCO Fast Response All Stainless Steel Sensor Probe - RTD
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MINCO Fast Response All Stainless Steel Sensor Probe is engineered for high pressures and corrosive fluids, offering a temperature range from -269 to 260°C (-452 to 500°F). With a time constant as low as 2 seconds, these probes outperform standard stainless steel alternatives. Built with a low-mass element, they exhibit rapid temperature reaction times, ensuring accuracy and efficiency in monitoring applications. The stainless steel construction guarantees durability and reliability even in harsh environments.
Product Specifications
Specifications Case Style
Maximum case length: 48" (1220 mm), longer on special order | Minimum case length: S602, S604: 2.0" (50.8 mm) with PTFE insulated leads; 3.0" (76.2 mm) with SS braid over leads. S601, S603: 3.0"" (76.2 mm) | S601, S603, S604: 316 stainless steel | S602, S614: 304/305 stainless steel
Specifications Elements
Single
Specifications Insulation Resistance
1000 megohms minimum at 500 VDC, leads to case.
Specifications Leads
2, 3, or 4 leadwires, AWG 22, stranded copper with PTFE insulation, stainless steel braid, or stainless steel armor. For 2-lead RTDs add .03 O/foot of combined case and lead length to element tolerance (model S602 has AWG 26; add .08 O/foot for 2-lead)
Specifications Normally In Stock
Yes
Specifications Pressure Rating
103 bar | 1500 psi
Specifications Sensor Type
Resistance Temperature Detector (RTD)
Specifications Shock
Withstands 100 Gâs min. sine wave shock of 8 milliseconds duration
Specifications Temperature Range
-269 to 260°C (-452 to 500°F).
Specifications Time Constant
S601: 3 seconds | S602, S604, S614: 2 seconds | S603: 4 seconds. | Typical in moving water
Specifications Units Per Package
1
Specifications Vibration
Withstands 10 to 2000 Hz at 20 Gâs min. per MIL-STD-202, Method 204, Test Condition D
