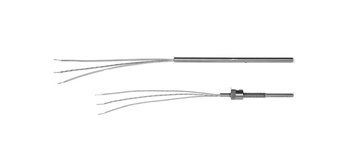

MINCO High Temperature 550°C Sensor Probe - RTD Thermocouple
MINCO High Temperature 550°C Sensor Probe - RTD Thermocouple
SKU:MIN-bdb106
Highly reliable MINCO High Temp Sensor Probe - RTD Thermocouple for precise readings in extreme temperatures.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
MINCO High Temperature 550°C Sensor Probe - RTD Thermocouple
$79.99
Quantity: 1
Claim Your Seller Account
MINCO High Temperature 550°C Sensor Probe - RTD Thermocouple
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MINCO High Temperature 550°C Sensor Probe is designed for precise temperature readings in demanding environments such as steam lines and exhaust gases. Featuring high temperature ceramic elements encased in durable stainless steel, this probe ensures long-term reliability. With bayonet-style lockcap installation and the ability to cut to required lengths, this probe offers flexibility and ease of use. With a temperature range of -100 to 550°C, this resistance temperature detector (RTD) and thermocouple sensor is ideal for industrial applications that demand accuracy and durability.
Product Specifications
Specifications Case Style
316 stainless steel | Maximum case length: 48" (1220 mm), longer on special order. | Minimum case length: 0.250" diameter: S80, S81: 4.0" (101.6 mm). 0.188" diameter: S71, S72: 2.0" (50.8 mm) S73, S74: 3.0" (76.2 mm)
Specifications Element
Platinum, 100 O at 0°C, TCR = 0.00385 O/O/°C
Specifications Elements
Single
Specifications Insulation Resistance
10 megohms min. at 100 VDC, leads to case.
Specifications Leads
2 or 3 leadwires, AWG 22, stranded copper with mica/glass insulation. For 2-lead RTDs add 0.04 O per foot of combined case and lead length to element tolerance.
Specifications Normally In Stock
Yes
Specifications Pressure Rating
103 bar | 1500 psi
Specifications Sensor Type
Resistance Temperature Detector (RTD) | Thermocouple
Specifications Shock
Withstands 100 Gâs min. sine wave shock of 8 milliseconds duration
Specifications Temperature Range
-100 to 550°C | -148 to 1022°F | Leadwires: 500°C (932°F) max
Specifications Time Constant
10 seconds typical in moving water
Specifications Units Per Package
1
Specifications Vibration
Withstands 10 to 2000 Hz at 20 Gâs min. per MIL-STD-202, Method 204, Test Condition D
