MINCO High Temperature 600°C Sensor Probe - RTD Thermocouple
MINCO High Temperature 600°C Sensor Probe - RTD Thermocouple
SKU:MIN-a34bac
Accurate and durable RTD sensor probe for high-temp applications. Platinum elements ensure precision and stability.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
MINCO High Temperature 600°C Sensor Probe - RTD Thermocouple
$129.99
Quantity: 1
Claim Your Seller Account
MINCO High Temperature 600°C Sensor Probe - RTD Thermocouple
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

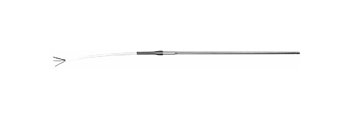

The MINCO High Temperature 600°C Sensor Probe is a precision instrument designed for reliable temperature measurements in extreme environments, covering the full range of -200 to 600°C (-328 to 1112°F). This Resistance Temperature Detector (RTD) features platinum elements to EN60751 Class A or B standards, ensuring exceptional accuracy and stability. With a rugged 316 stainless steel case and superior pressure and shock resistance, this sensor probe guarantees long-term durability in demanding industrial applications.
Product Specifications
Specifications Case Style
316 stainless steel | Maximum case length: 48.0" (1220 mm), longer on special order | Minimum case length: 2.0" (50.8 mm)
Specifications Elements
Single
Specifications Insulation Resistance
10 megohms minimum at 100 VDC, leads to case.
Specifications Pressure Rating
1000 psi (69 bar) at 25°C.
Specifications Repeatability
Meet IEC requirements. Typical shift less than 0.05°C (0.02 O) at 0°C after ten cycles over range.
Specifications Sensor Type
Resistance Temperature Detector (RTD)
Specifications Shock
Will withstand 250 mm drop onto 8 mm thick steel plate (approximately 1400 Gâs for 0.08 ms).
Specifications Stability
Meet IEC stability specifications after 250 hours exposure to extremes of temperature range. Typical drift is less than 0.05°C (0.02 O) at 0°C.
Specifications Temperature Range
-200 to 600°C | -328 to 1112°F | Reduced temperature rating for leads and last 2" (50 mm) of case
Specifications Time Constant
10 seconds typical in moving water
Specifications Tolerance
EN60751 Class A or B. Class A: ± 0.06% Class B: ± 0.12%
Specifications Units Per Package
1
Specifications Vibration
Will withstand 10 to 5000 Hz at 2 Gâs minimum per EN60751
