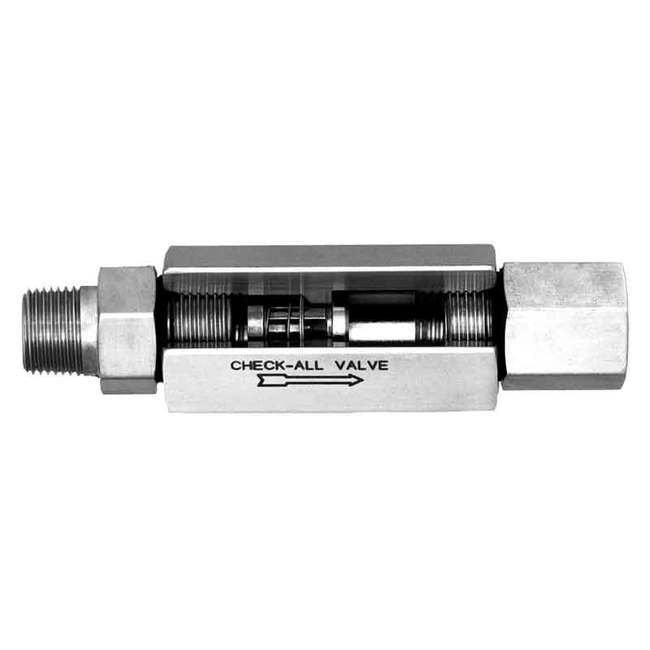

Mini-Check Valve - M4 Style, 1/4 in, 3.50 psi Cracking Pressure

Name: Mini-Check Valve - M4 Style, 1/4 in, 3.50 psi Cracking Pressure
Brand: Check-All Valve Mfg. Co.
SKU: M1T-c73dfe
Price: 65.99 USD
Availability: OutOfStock

SKU:M1T-c73dfe

Explore the versatile and durable Mini-Check Valve in M4 style with a 3.50 psi cracking pressure for reliable industrial applications.

$65.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Mini-Check Valve in M4 style offers precise control with a standard 3.50 psi cracking pressure. Constructed with high-grade materials like 316 Stainless Steel, it ensures durability and minimal pressure drop. This valve is versatile, compatible with various fittings, and suitable for low-pressure relief or vacuum break applications. Engineered for reliability, it meets stringent quality standards and provides optimal performance across a wide range of industrial applications.

Product Specifications

Note

When ordering styles M5 through M8 be sure to specify whether compression (-C) or 37º flare (-F).Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.

Specifications Body Material

316 Stainless Steel = SS | Brass = BR | Carbon Steel = CS

Specifications Certifications

European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified

Specifications Nominal Pipe And Tube Size

1/4 in

Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei

5000 psig

Specifications Note For Material

Listed above are the most common material selections. Please contact the factory for additional options.

Specifications Note For Non Shock Pressure Rating At 100 Degree

Consult factory for P-T rating above 100 ºF.

Specifications Seat Material

Specifications Size Code

Specifications Special Options

C = Compression Tube (M5 - M8 only) | F = Flared Tube (M5 - M8 only) | O = Outer O-Ring Seals Same as Seat | T = FEP Encapsulated Spring

Specifications Spring Material

Specifications Standard Cracking Pressure

3.50 psi

Specifications Standard End Fitting O Ring Material

Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Polytetrafluoroethylene (PTFE) = TF

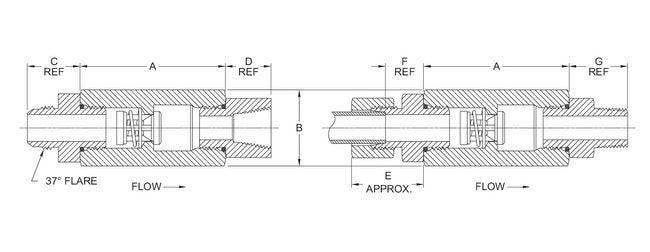

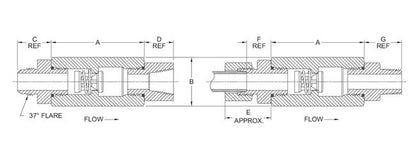

Specifications Valve Style

M4 - Female Pipe Inlet - Male Pipe Outlet
