Mini Circuit Board Support: .125 Board Hole x .125 Chassis Hole
Mini Circuit Board Support: .125 Board Hole x .125 Chassis Hole
SKU:01C-9c0b4b
Secure & release with ease: Mini Circuit Board Support for .125-inch holes. RoHS compliant. Pack of 1000.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mini Circuit Board Support: .125 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
Mini Circuit Board Support: .125 Board Hole x .125 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 56 Series Mini Circuit Board Support offers secure locking in a .125-inch hole, providing reliable board support and easy release. Crafted from Nylon 66 UL94V-2 material, this support is RoHS compliant and suitable for a temperature range of -40 to 185F. Ideal for circuit board assemblies, it meets ASTM D 4066 and PA111 standards, ensuring durability and reliability. Additionally, this support is available in a natural color and comes in a pack of 1000 units.
Ready to Grow Without Cash Flow Constraints?

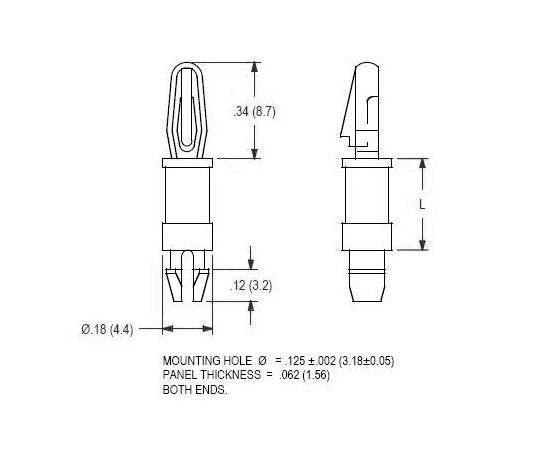

Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.125 (3.2) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
