Mini Circuit Board Support - Locking Teardrop Style
Mini Circuit Board Support - Locking Teardrop Style
SKU:01C-478f38
Secure and release with ease. Nylon 66 construction. ASTM & RoHS compliant. Temp range: -40 to 185F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mini Circuit Board Support - Locking Teardrop Style
$29.99
Quantity: 1
Claim Your Seller Account
Mini Circuit Board Support - Locking Teardrop Style
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 60 Series Mini Circuit Board Support is designed for secure and reliable mounting in .100 chassis holes. This locking PCB support features a teardrop style board end that allows for easy release. Constructed from Nylon 66 UL94V-2 material (UL94V-0 option available), this support is ASTM and RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this support is ideal for various applications requiring stability and durability.

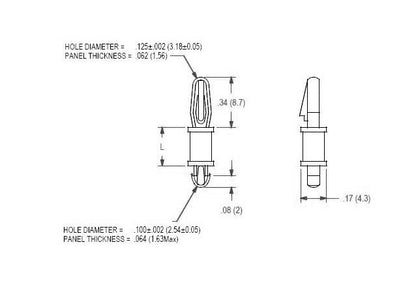

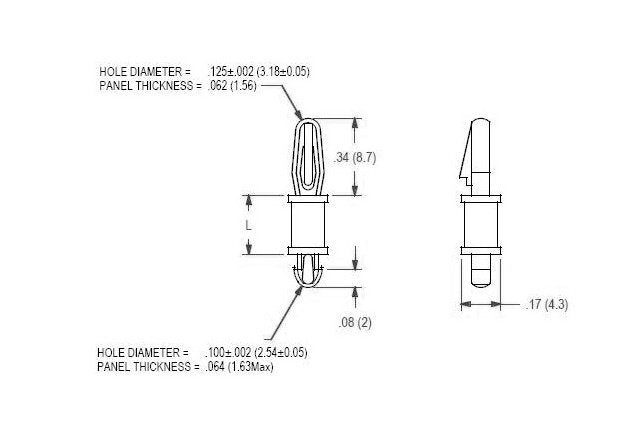

Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.100 (2.54) inches (mm)
Specifications Dim L 015
.312 (7.9) inches (mm)
Specifications Panel Thickness
.062 (1.56) Both Ends inches (mm)
Specifications Remarks Panel Thickness
.064 Max Chassis
