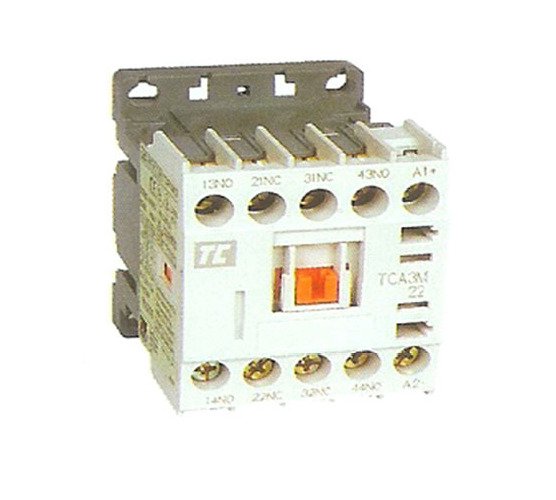

Mini Control Relay for AC Systems - 3 NO + 1 NC
Mini Control Relay for AC Systems - 3 NO + 1 NC
SKU:REL-fd59e1
Reliable Mini Control Relay for AC Systems with 3 NO + 1 NC contacts
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mini Control Relay for AC Systems - 3 NO + 1 NC
$29.99
Quantity: 1
Claim Your Seller Account
Mini Control Relay for AC Systems - 3 NO + 1 NC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mini Control Relay for AC Systems features a composition of 3 Normally Open (NO) and 1 Normally Closed (NC) contacts, designed for smooth operation in alternating current (AC) applications. With a Mechanical Life of 20 million cycles, this relay ensures long-lasting performance. It meets stringent industry standards and offers reliable control for various loads, making it ideal for both consumer and institutional buyers.
Product Specifications
Accessories Auxiliary Contact Blocks Ith 10a
Item #: TA1-M20Composition: 2 Normally Open (NO)Mounting: Front MountItem #: TA1-M02Composition: 2 Normally Closed (NC)Mounting: Front MountItem #: TA1-M11Composition: 1 Normally Open (NO) + 1 Normally Closed (NC)Mounting: Front MountItem #: TA1-M40Composition: 4 Normally Open (NO)Mounting: Front MountItem #: TA1-M31Composition: 3 Normally Open (NO) + 1 Normally Closed (NC)Mounting: Front MountItem #: TA1-M22Composition: 2 Normally Open (NO) + 2 Normally Closed (NC)Mounting: Front MountItem #: TA1-M13Composition: 1 Normally Open (NO) + 3 Normally Closed (NC)Mounting: Front MountItem #: TA1-M04Composition: 4 Normally Closed (NC)Mounting: Front MountItem #: TA8-M10Composition: 1 Normally Open (NO)Mounting: Side MountItem #: TA8-M01Composition: 1 Normally Closed (NC)Mounting: Side Mount
Accessories Coil Suppressor Varistor
Item #: TA9-M980/1Voltage: 24 to 48 Alternating Current (AC) Voltage (V)Item #: TA9-M980/2Voltage: 60 to 127 Alternating Current (AC) Voltage (V)Item #: TA9-M980/3Voltage: 200 to 240 Alternating Current (AC) Voltage (V)Item #: TA9-M980/4Voltage: 12 to 24 Direct Current (DC) Voltage (V)Item #: TA9-M980/5Voltage: 30 to 72 Direct Current (DC) Voltage (V)Item #: TA9-M980/6Voltage: 100 to 127 Direct Current (DC) Voltage (V)Item #: TA9-M980/7Voltage: 200 to 250 Direct Current (DC) Voltage (V)
Accessories Front Mounted Electronic Timers
Item #: TA2-M/1NVoltage: 24 to 48 Alternating Current (AC)/Direct Current (DC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: OnItem #: TA3-M/1FVoltage: 24 to 48 Alternating Current (AC)/Direct Current (DC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: OffItem #: TA2-M/2NVoltage: 100 to 240 Alternating Current (AC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: OnItem #: TA3-M/2FVoltage: 100 to 240 Alternating Current (AC) Voltage (V)Time: 0.1 to 30 Seconds (s)Delay: Off
Accessories Note For Accessories
Mechanical Interlock ComponentsCable Kits for Line and Load Sides
Inductive Load Inductive Load Makingbreaking Alternating Current
13.2 A
Inductive Load Inductive Load Rated Alternating Current Ac Duty
2 A
Resistive Load Resistive Load Makingbreaking Alternating Current
13.2 A
Resistive Load Resistive Load Rated Alternating Current Ac Duty
5 A
Specifications Alternating Current Ac Reference Code For 12060 V
G6
Specifications Alternating Current Ac Reference Code For 20860 V
L6
Specifications Alternating Current Ac Reference Code For 24060 V
U6
Specifications Alternating Current Ac Reference Code For 2460 Vo
B6
Specifications Alternating Current Ac Reference Code For 27760 V
W6
Specifications Composition
3 Normally Open (NO) + 1 Normally Closed (NC)
Specifications Continuous Thermal Current Ith At Alternating Cur
16 A
Specifications Controller Type
Alternating Current (AC)
Specifications Electrical Life At Alternating Current Ac12 Duty
0.25 Million Operation Cycles
Specifications Electrical Life At Alternating Current Ac15 Duty
0.50 Million Operation Cycles
Specifications Electrical Life At Direct Current Dc13 Duty Cycle
0.50 Million Operation Cycles
Specifications Mechanical Life
20 Million Operation Cycles
Specifications Operation Per Hour
1800
