Mini Impedance Matching Transformers - Red Spec
Mini Impedance Matching Transformers - Red Spec
SKU:AUD-a6d330
Enhance audio precision with our Miniature Impedance Matching Transformers - Red Spec. Ideal for Mil-Aero, Medical, and Pro Audio applications. Precision-spaced plug-in terminals and high strength Nickel alloy leads ensure reliability and superior performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Mini Impedance Matching Transformers - Red Spec
$89.99
Quantity: 1
Claim Your Seller Account
Mini Impedance Matching Transformers - Red Spec
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Elevate your audio experience with Triad's Miniature Impedance Matching Transformers in Red Spec. Designed for demanding applications like Mil-Aero, Medical, and Pro Audio, these transformers deliver precision and durability. With features like precision-spaced plug-in terminals, high strength Nickel alloy leads, and RoHS compliance, these transformers ensure optimal performance and reliability. Operating temperature of -40 to 85°C and primary impedance of 80 Ohm make them suitable for a wide range of uses.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
12.5 Ohm
Specifications Dc Resistance Secondary
4.5 ohm Split Secondary | 3.95 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz

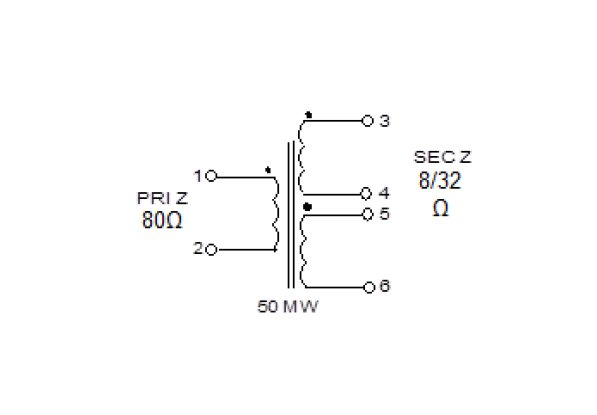

Specifications Matching Impedance Primary
80 Ohm
Specifications Matching Impedance Secondary
8 ohm Split Secondary | 32 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
3.0 mA
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
3.143:1.0:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

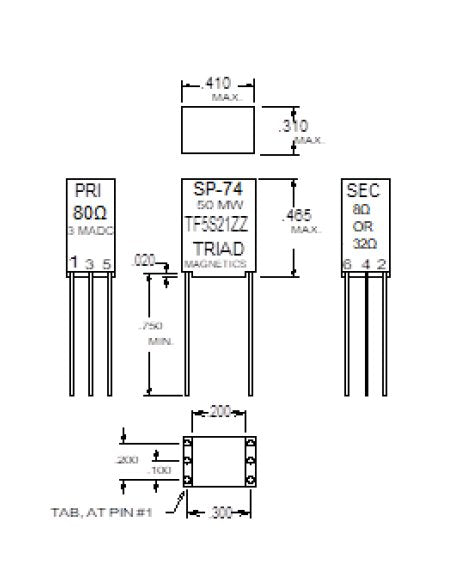

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
