Mini Locking Circuit Board Support: .125 Board Hole x .100 Chassis Hole
Mini Locking Circuit Board Support: .125 Board Hole x .100 Chassis Hole
SKU:01C-c62444
Secure and releasable Mini Circuit Board Support for .100 Chassis Hole. Nylon 66 material, RoHS compliant, ASTM & UL certified.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Mini Locking Circuit Board Support: .125 Board Hole x .100 Chassis Hole
$24.99
Quantity: 1
Claim Your Seller Account
Mini Locking Circuit Board Support: .125 Board Hole x .100 Chassis Hole
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 60 Series Mini Locking Circuit Board Support is designed for .100 Chassis Hole installations. Featuring a teardrop style for secure board attachment, this support is easily releasable for maintenance. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 and PA111 standards. With a temperature range of -40 to 185F, it's RoHS compliant and comes in a natural color. Ideal for circuit board supports in various applications.
Ready to Grow Without Cash Flow Constraints?

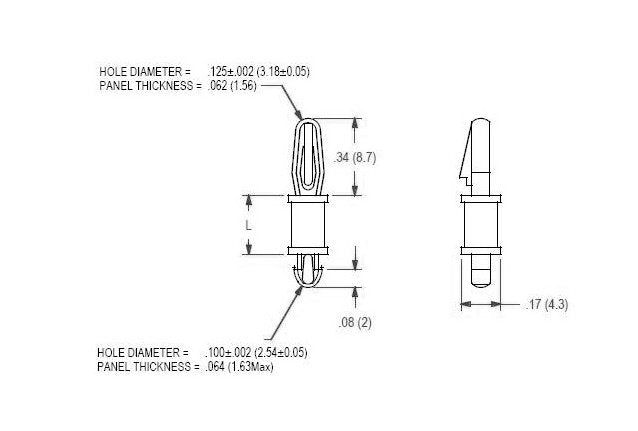

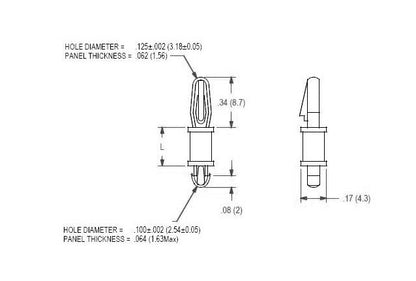

Product Specifications
Specifications Board Hole Diameter
.125 (3.18) inches (mm)
Specifications Chassis Hole Diameter
.100 (2.54) inches (mm)
Specifications Dim L 015
.125 (3.2) inches (mm)
Specifications Panel Thickness
.062 (1.56) Both Ends inches (mm)
Specifications Remarks Panel Thickness
.064 Max Chassis
