Mini Locking Circuit Board Support, .125 Board Hole x .125 Chassis Hole
Mini Locking Circuit Board Support, .125 Board Hole x .125 Chassis Hole
SKU:01C-487856
Secure, reliable Mini Circuit Board Support with .125 Board & Chassis Hole, Nylon 66 material, RoHS compliant, pack of 1000. Ideal for stable circuit board installations.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Mini Locking Circuit Board Support, .125 Board Hole x .125 Chassis Hole
$49.99
Quantity: 1
Claim Your Seller Account
Mini Locking Circuit Board Support, .125 Board Hole x .125 Chassis Hole
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 56 Series Mini Locking Circuit Board Support is an essential component for secure and reliable circuit board installations. Featuring a .125-inch diameter board hole and chassis hole, this support ensures a precise fit while offering easy release when needed. Made of durable Nylon 66 material, UL94V-2 rated (UL94V-0 available), and compliant with RoHS regulations, this support guarantees safety and performance. With a temperature range of -40 to 185F, it is suitable for a wide range of applications. Perfect for maintaining stability and organization in circuit board assemblies, this support comes in a pack of 1000 units.
Ready to Grow Without Cash Flow Constraints?

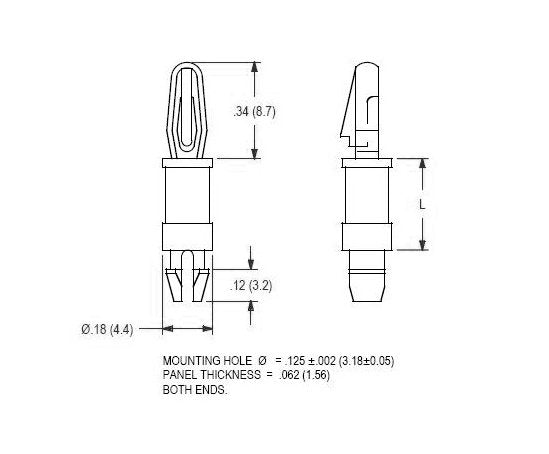

Product Specifications
Specifications Board Hole Diameter
.125 (3.2) inches (mm)
Specifications Chassis Hole Diameter
.125 (3.2) inches (mm)
Specifications Dim L
.750 (19.1) inches (mm)
Specifications Panel Thickness
.062 (1.6) inches (mm)
Specifications Remarks Panel Thickness
Same Both Ends
