Mini M55116 Connectors
Mini M55116 Connectors
SKU:TAC-869d51
Discover high-performance Miniature M55116-Type TAC Connectors by Amphenol NEXUS Technologies, offering size and weight reduction without compromising quality. Ideal for soldier-worn gear and radio systems.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Mini M55116 Connectors
$34.99
Quantity: 1
Claim Your Seller Account
Mini M55116 Connectors
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

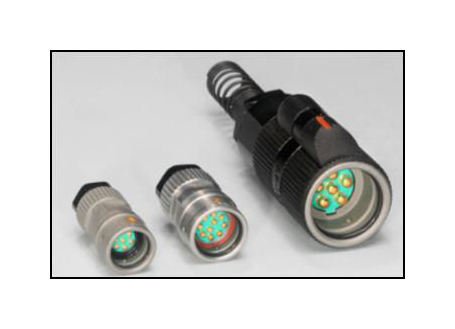

The Mini M55116 Connectors by Amphenol NEXUS Technologies are designed to meet the evolving needs of military and commercial applications, offering a significant reduction in connector size and weight without compromising performance. Compliant with MIL-DTL-55116 requirements, these TAC Connectors are ideal for soldier-worn applications, radio systems, and ruggedized communications. Featuring a 7-Conductor Plug design with stainless steel shell material, gold-plated brass contacts, and a current rating of 0.5A, these connectors excel in diverse environments while maintaining reliability and durability.
Product Specifications
Features 0
Both plug and receptacle are 50% smaller than the standard M55116 connectors (M55116/4 and M55116/10, as a comparison)Standard plugs have rigid contacts; jacks have spring-loaded contacts with solder cup terminalsMolded-in spring-loaded contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Standard wire strain relief accommodates .125 and .250 cable diameter
Specifications Connector Style
7-Conductor Plug
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
PCB | Solder Cup
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level
500 V
Specifications Finish
Sand Blast, finish type E300 IAW MIL-F-14072
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications In Line Rear Accessories
Over-Molded | Wire Strain Relief
Specifications Mating
Bayonet Coupling
Specifications Number Of Contacts
7
Specifications Shell Material
Stainless Steel, Passivated
Specifications Shell Styles
Plug
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
