Mini Overload Relay - 0.16-0.25A Setting Current Range
Mini Overload Relay - 0.16-0.25A Setting Current Range
SKU:REL-6970b3
Compact Mini Overload Relay with 0.16-0.25A Setting Current Range for TC1-M6, TC1-M9, and TC1-M12 contactor types. DIN rail or screw mountable with trip class 10A compliance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mini Overload Relay - 0.16-0.25A Setting Current Range
$29.99
Quantity: 1
Claim Your Seller Account
Mini Overload Relay - 0.16-0.25A Setting Current Range
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

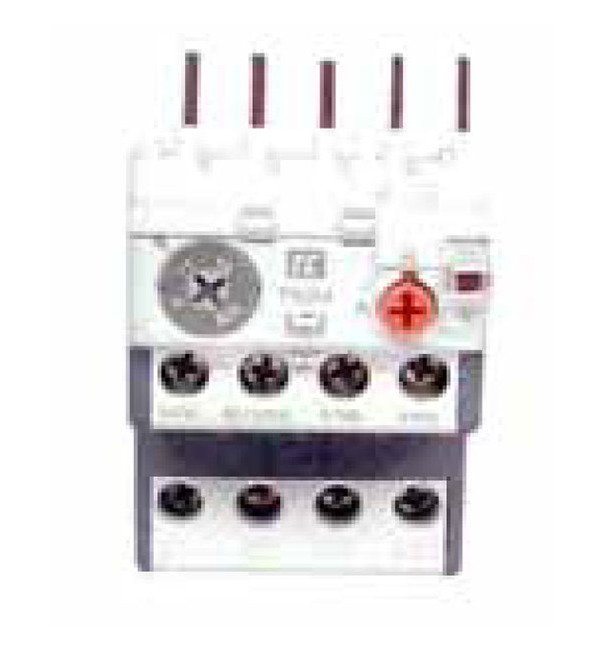

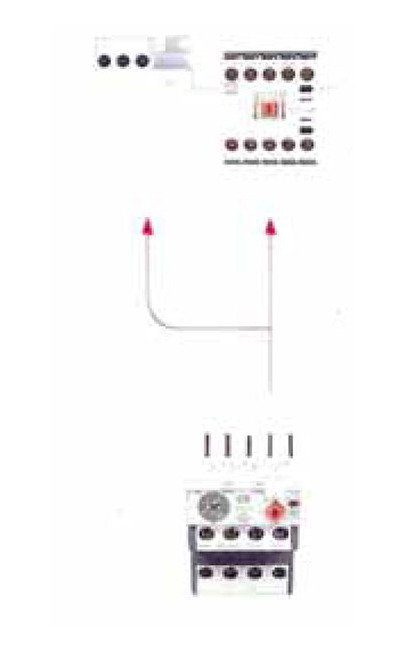

The Mini Overload Relay by Shamrock Controls offers a setting current range of 0.16 to 0.25A with a compact design. Compatible with TC1-M6, TC1-M9, and TC1-M12 contactor types, this relay features small 45mm width, screw clamp connection, and DIN rail or screw mountable options. It boasts trip class 10A per IEC60947-4-1 standards, ambient/manual reset site selection, and trip-free design for reliable performance.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
0.16 to 0.25 A
Specifications Small Width
45 mm
