Mini Overload Relay - 0.63-1A Setting Current Range
Mini Overload Relay - 0.63-1A Setting Current Range
SKU:REL-8b968a
Compact Mini Overload Relay with 0.63-1A range, ideal for TC1-M series contactors. Trip class 10A, DIN rail/screw mountable.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Mini Overload Relay - 0.63-1A Setting Current Range
$29.99
Quantity: 1
Claim Your Seller Account
Mini Overload Relay - 0.63-1A Setting Current Range
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

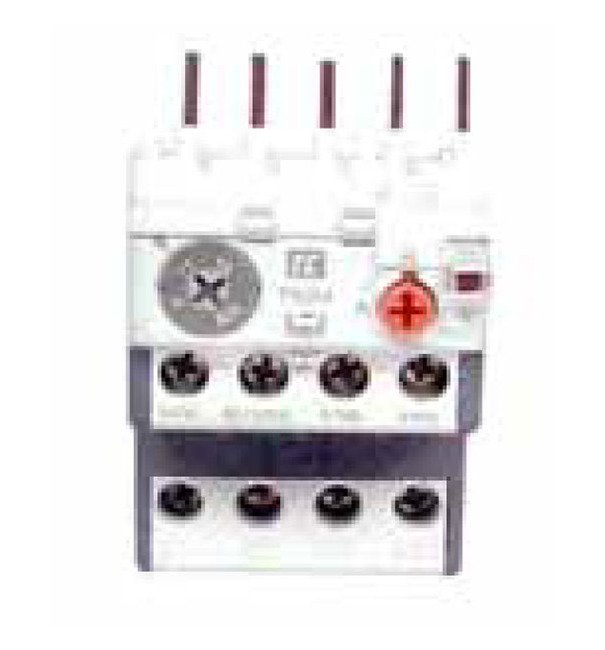

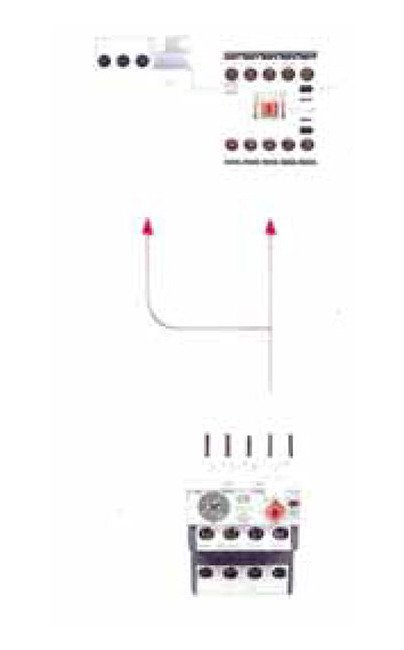

The Mini Overload Relay, compatible with TC1-M6, TC1-M9, and TC1-M12 contactors, offers a setting current range from 0.63 to 1A. Manufactured by Shamrock Controls, it features a small width of 45mm and is DIN rail or screw mountable. This relay includes NO + 1 NC potential-free contacts, trip class 10A per IEC standards, ambient/manual reset options, and a trip-free design.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
0.63 to 1 A
Specifications Small Width
45 mm
