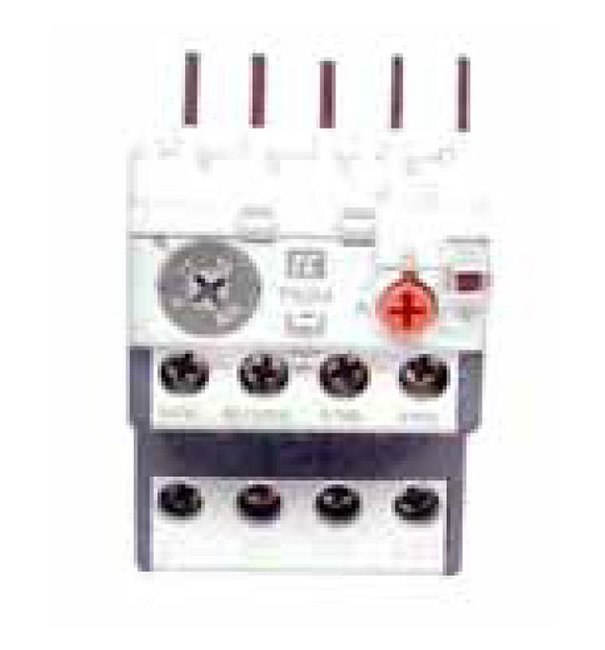

Mini Overload Relay 6-9A Setting Current Range
Mini Overload Relay 6-9A Setting Current Range
SKU:REL-2cf64f
Mini Overload Relay with 6-9A Setting Current Range, DIN/Screw Mountable, Trip Class 10A, NO + 1 NC Contacts
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Mini Overload Relay 6-9A Setting Current Range
$59.99
Quantity: 1
Claim Your Seller Account
Mini Overload Relay 6-9A Setting Current Range
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

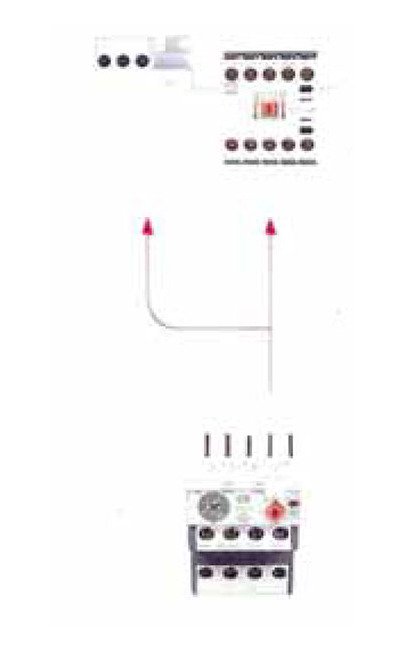

The Mini Overload Relay with a setting current range of 6 to 9 Ampere is designed for direct mounting on TC1-M6, TC1-M9, and TC1-M12 mini contactors with screw clamp connection. Manufactured by Shamrock Controls, this relay offers small width at 45mm, DIN rail or screw mountable options, trip class 10A according to IEC60947-4-1/1S-13947-4-1 standards, and ambient/manual reset site selectable features. It includes NO + 1 NC potential free contacts and follows a trip-free design, ensuring reliable overload protection in various electrical applications.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
6 to 9 A
Specifications Small Width
45 mm
